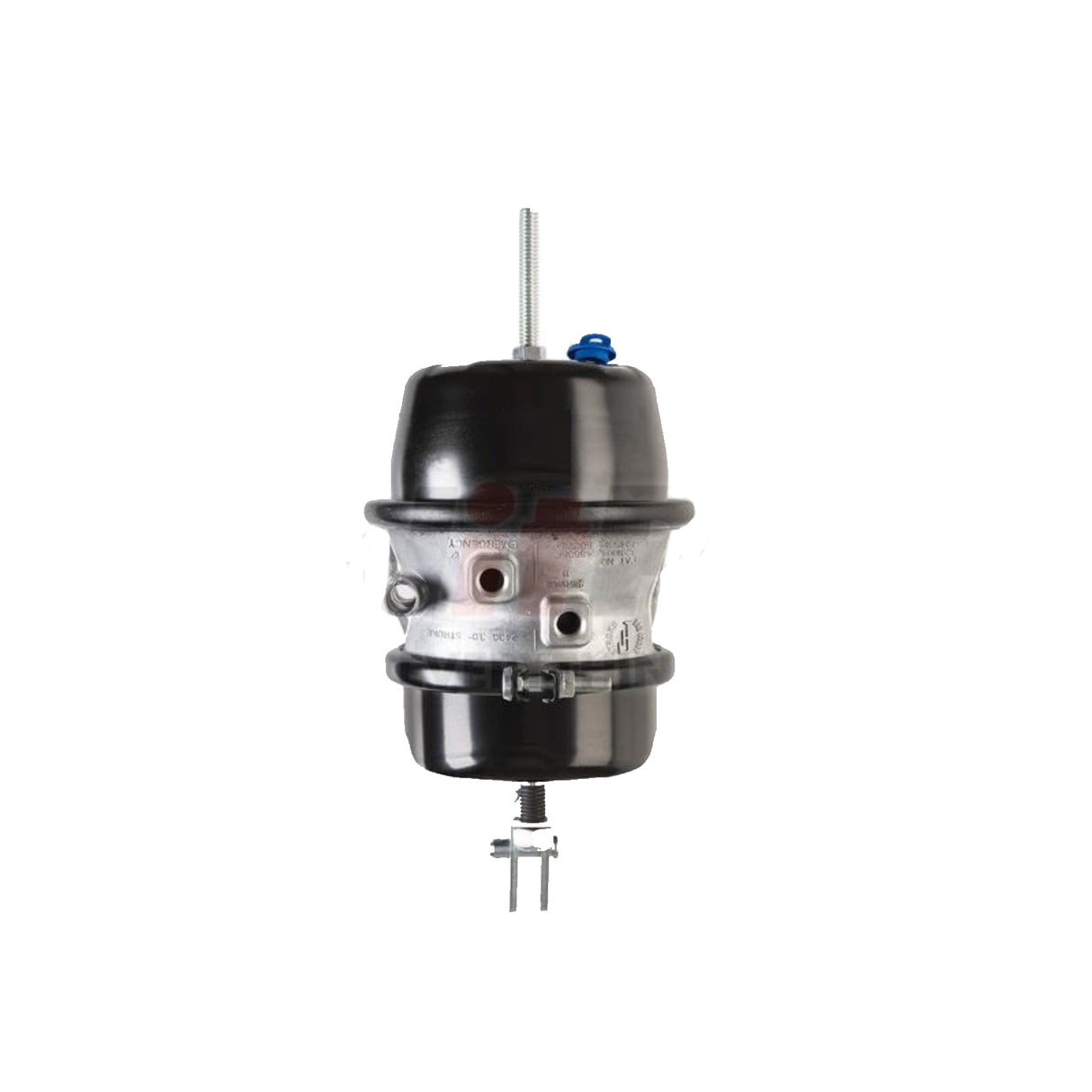

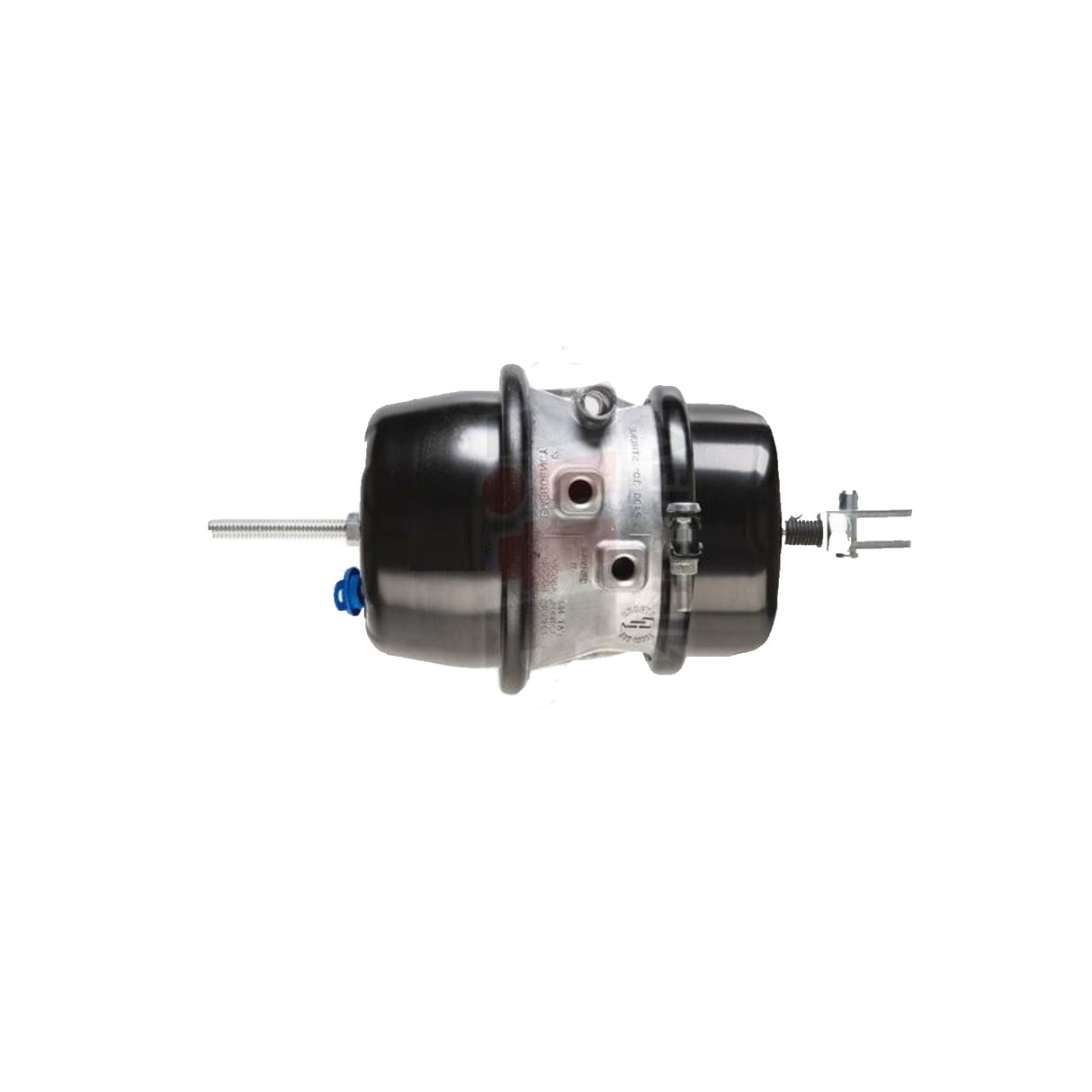

Type 30/36 Air Brake Chamber Welded Clevis 3" Long Stroke

TORQUE Type 30/36 Air Brake Chamber Welded Clevis 3" Long Stroke (TR3036CLS-WC)
Replaces: Haldex GC3036LCW, 1373036211, Navistar 2602430C91, Freightliner HDX1373036001

PRODUCT DETAILS

• Type: Long Stroke Air Brake Chamber 30/36 (3036) with Welded Clevis
• Replacement For:
  • Haldex: GC3036LCW, 1373036211, S1373036002
  • Navistar: 2602430C91, 3682364C91, 3842041C91
  • Freightliner: HDX1373036001, HDX1373036002, HDX1373036211

SPECS

• Actuator Type Size: 3036
• Stroke Type: Long Stroke
• Stroke Length: 3"
• Length (Mounting Bracket to Spring Housing): 10.6"
• Length of Piggyback: 8"
• Service Clampband Dimension: 10.2"
• Pushrod Length (Face of Service Housing): 1"
• Clevis Pin Centerline Distance (Face of Service Housing): 2-1/4"
• Weight: 25.9 lbs

FEATURES

• Enhanced Design: Includes Welded Clevis and Long Stroke Size 3036 with Square Bosses
• Superior Performance:
  • Advanced Power Spring Technology
  • Powder-coated for corrosion and fatigue resistance
  • Double O-ring Centerseal for positive sealing and long life
  • High-quality rubber diaphragm resistant to extreme heat and cold
  • Self-piloting dust shield for added durability
• Universal Fit: Compatible with all drum brake applications

WARRANTY
1-Year Unlimited Mileage Warranty, providing quality assurance and replacement support if any issues arise.
