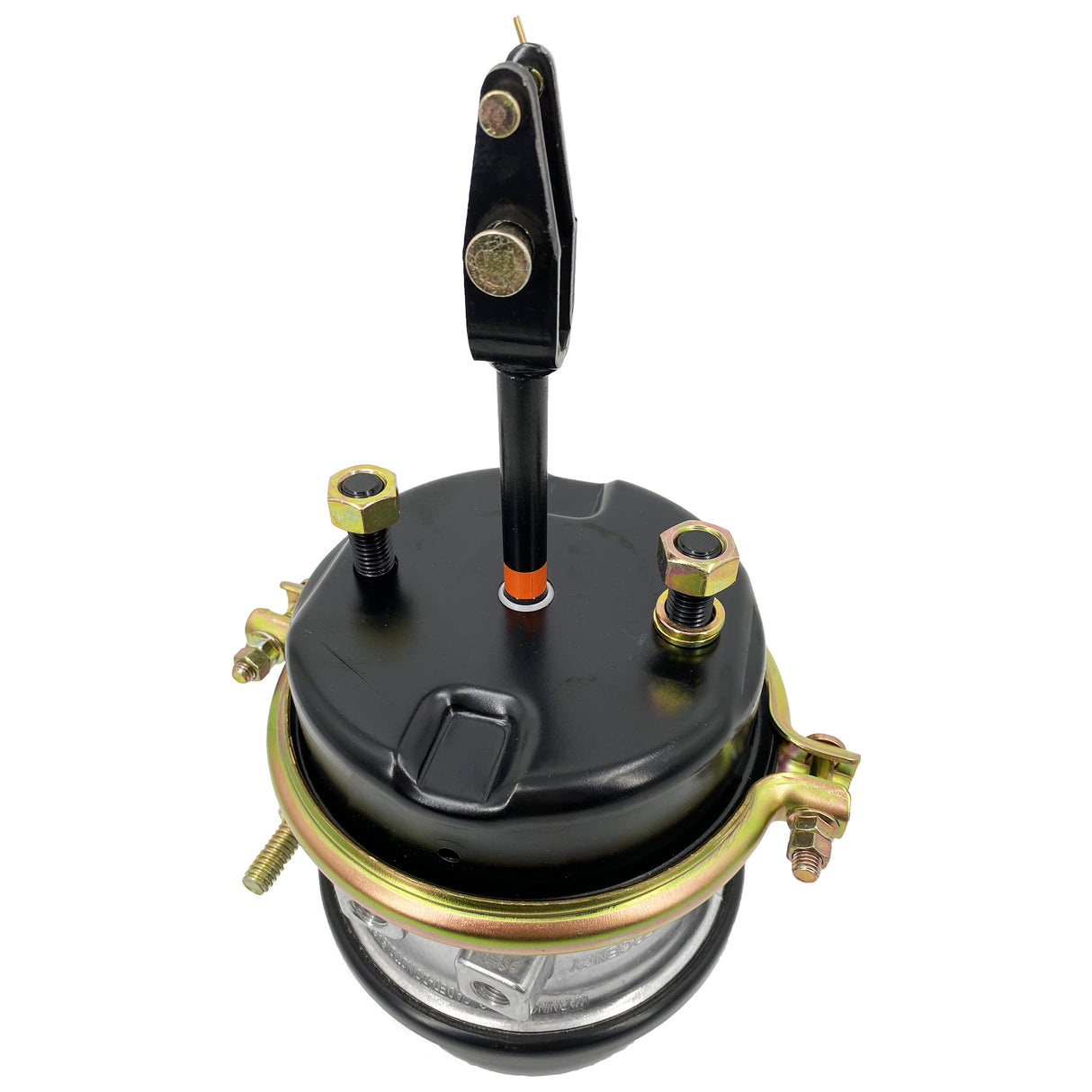

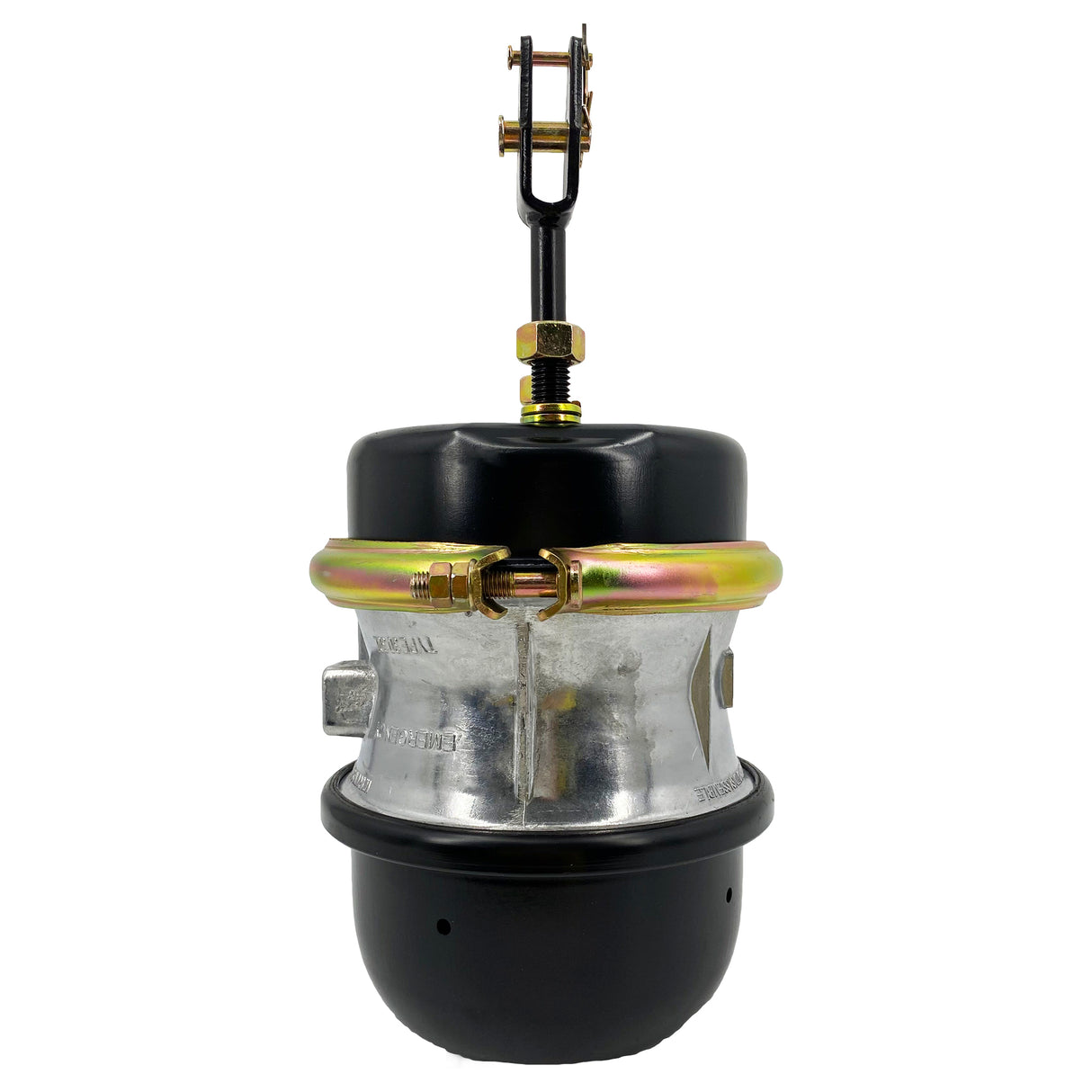

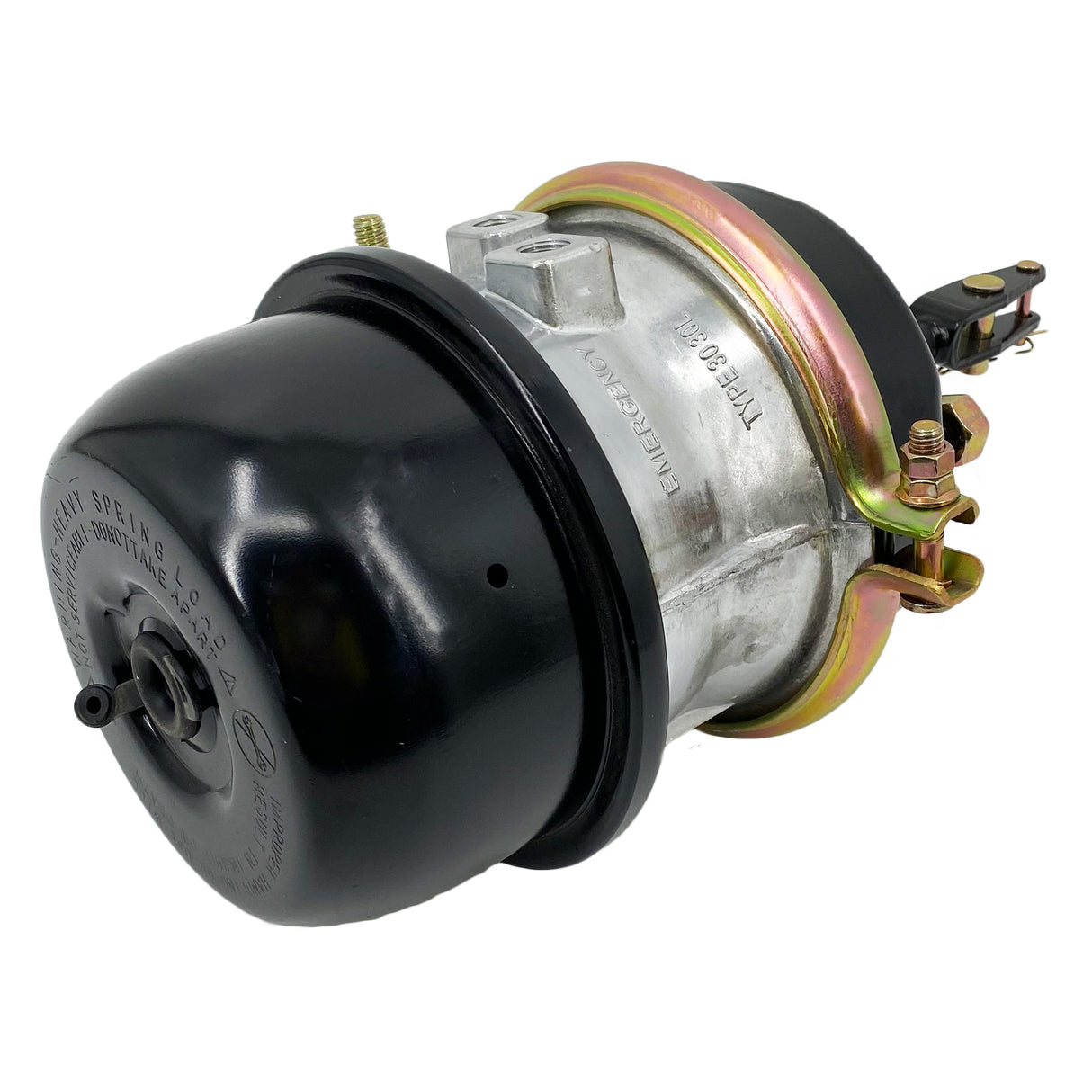

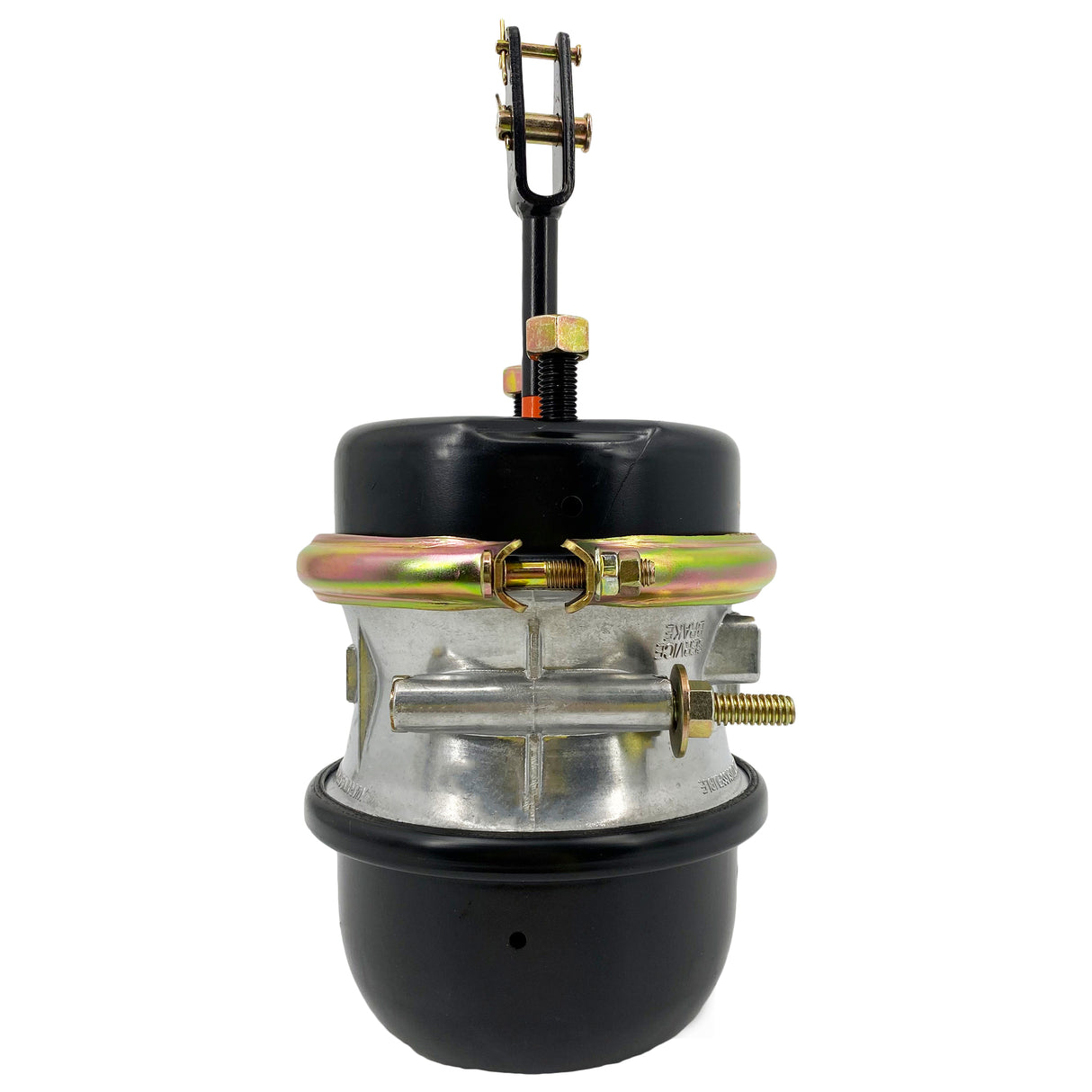

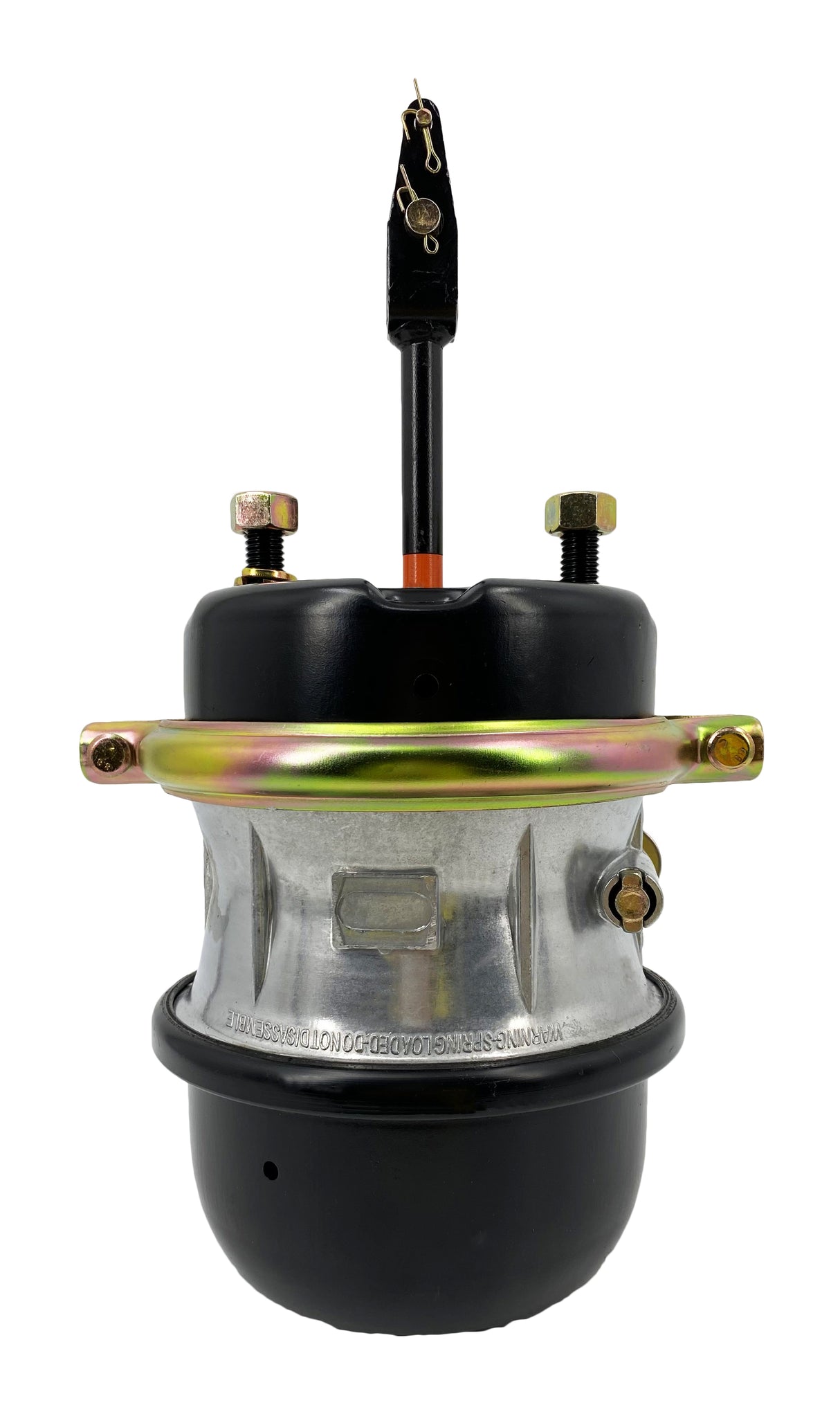

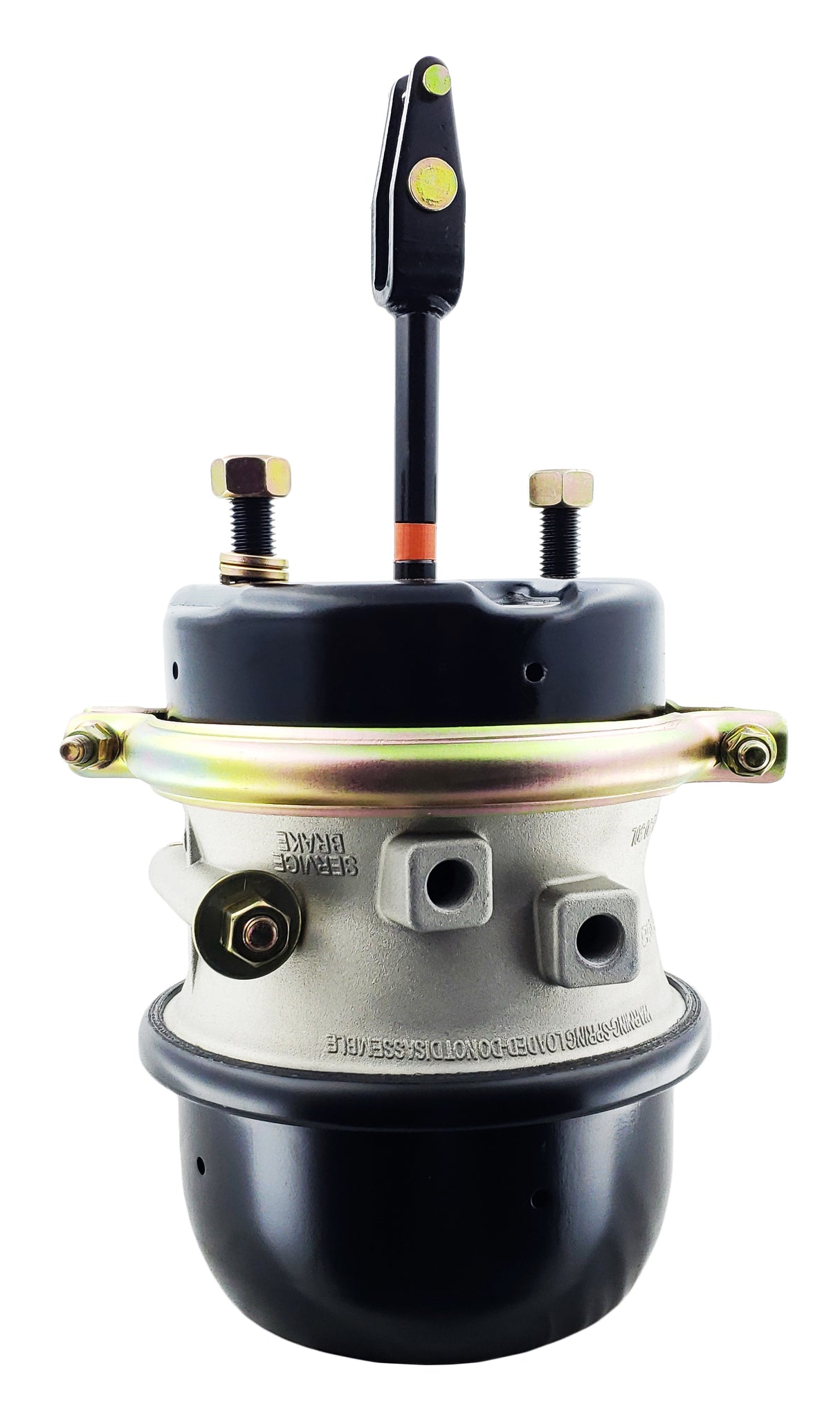

Type 30/30 Air Brake Chamber Welded Clevis 3" Long Stroke

- High-Quality Torque Long Stroke Air Brake Chamber Type 30/30 Welded Clevis
- Combination with Welded Clevis - Long Stroke - Size 3030 - Square Bosses
- Superior Power Spring Technology; Advanced powder coating process;
- Resists corrosion and fatigue
- Double O-ring Center seal; Two o-rings for positive sealing and plastic bearings for long life
- World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder-coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications

Replaces

Haldex: GC3030LCW
Bendix: NT3030ELS-WC
Freightliner: HDX1373030215
Others: BTS-3030LS-WCR, GTA-3030LS-WCR

Specifications

Actuator Type Size	: 3030
Stroke Type	: Long
Available Stroke	: 3", 76mm
Length from mounting bracket to the end of Spring Housing	: 9-7/8", 251mm
Length of Piggyback	: 7-3/8", 187mm
Dimension at rolled Spring Housing flange	: 8-5/16", 211mm
Dimension at Service Clampband	: 10-3/16", 259mm
Pushrod Length from the face of Service Housing	: 1"
Distance to Clevis Pin centerline from the face of Service Housing	: 2-1/4"
Weight	: 21.9 lbs. , 9.9 kg.
