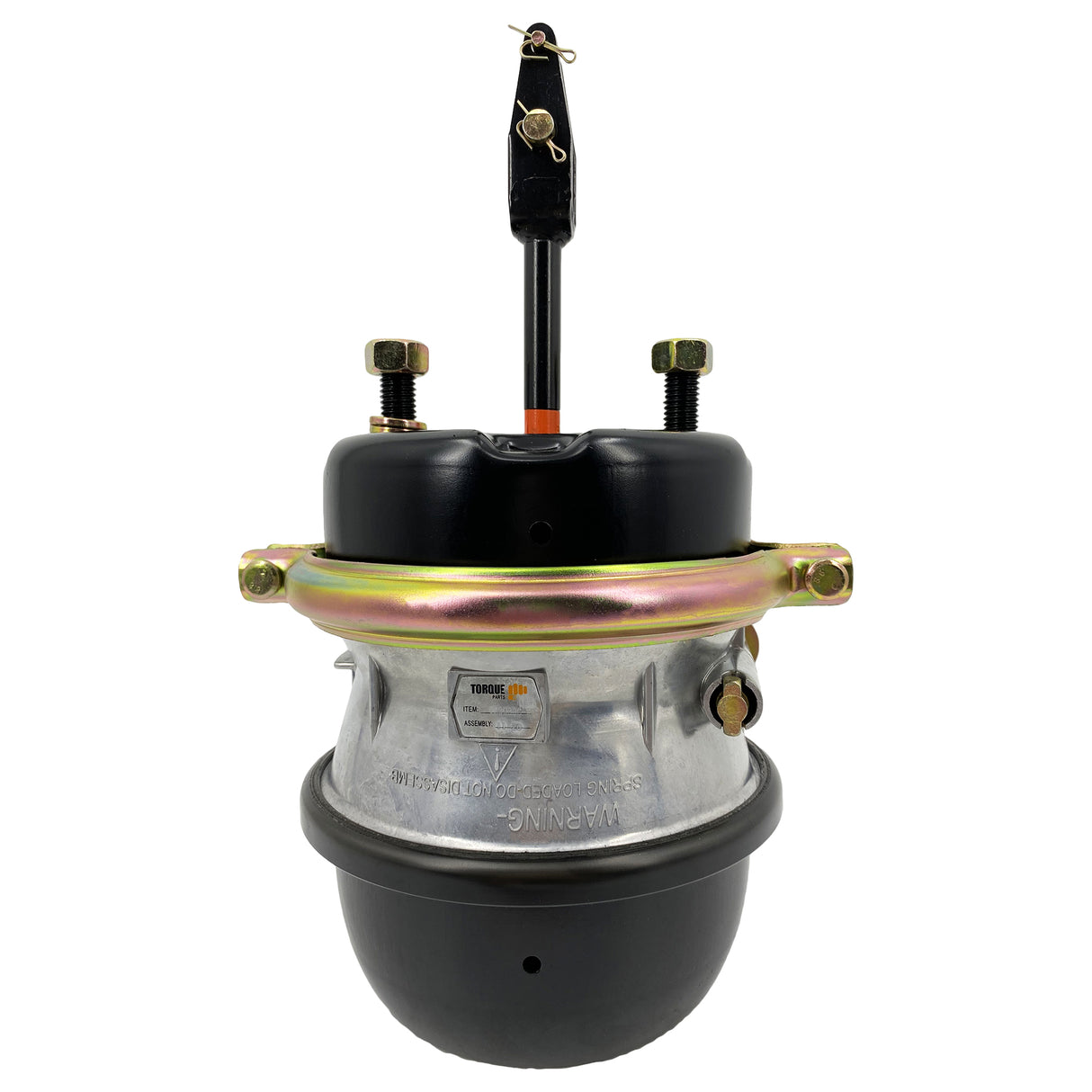

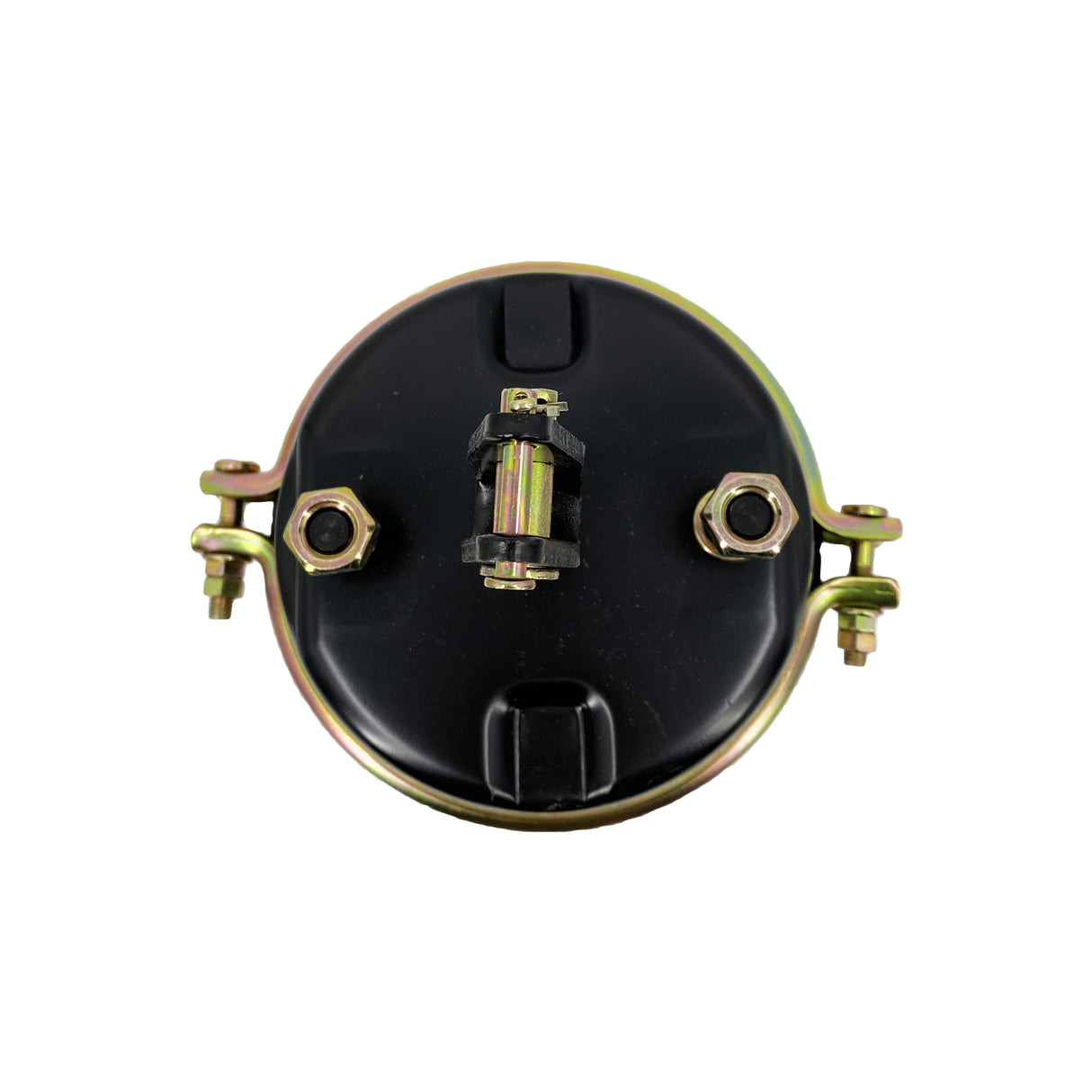

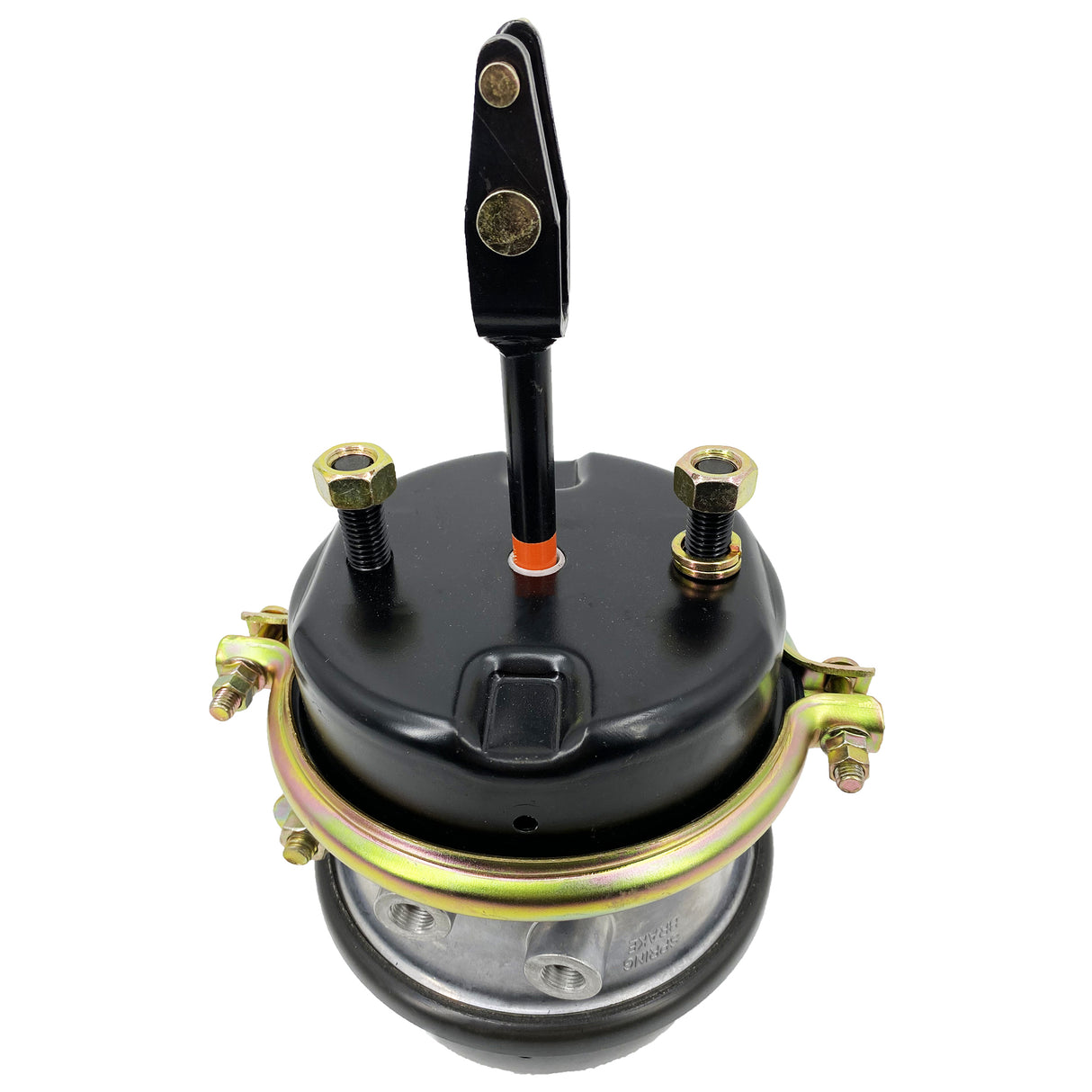

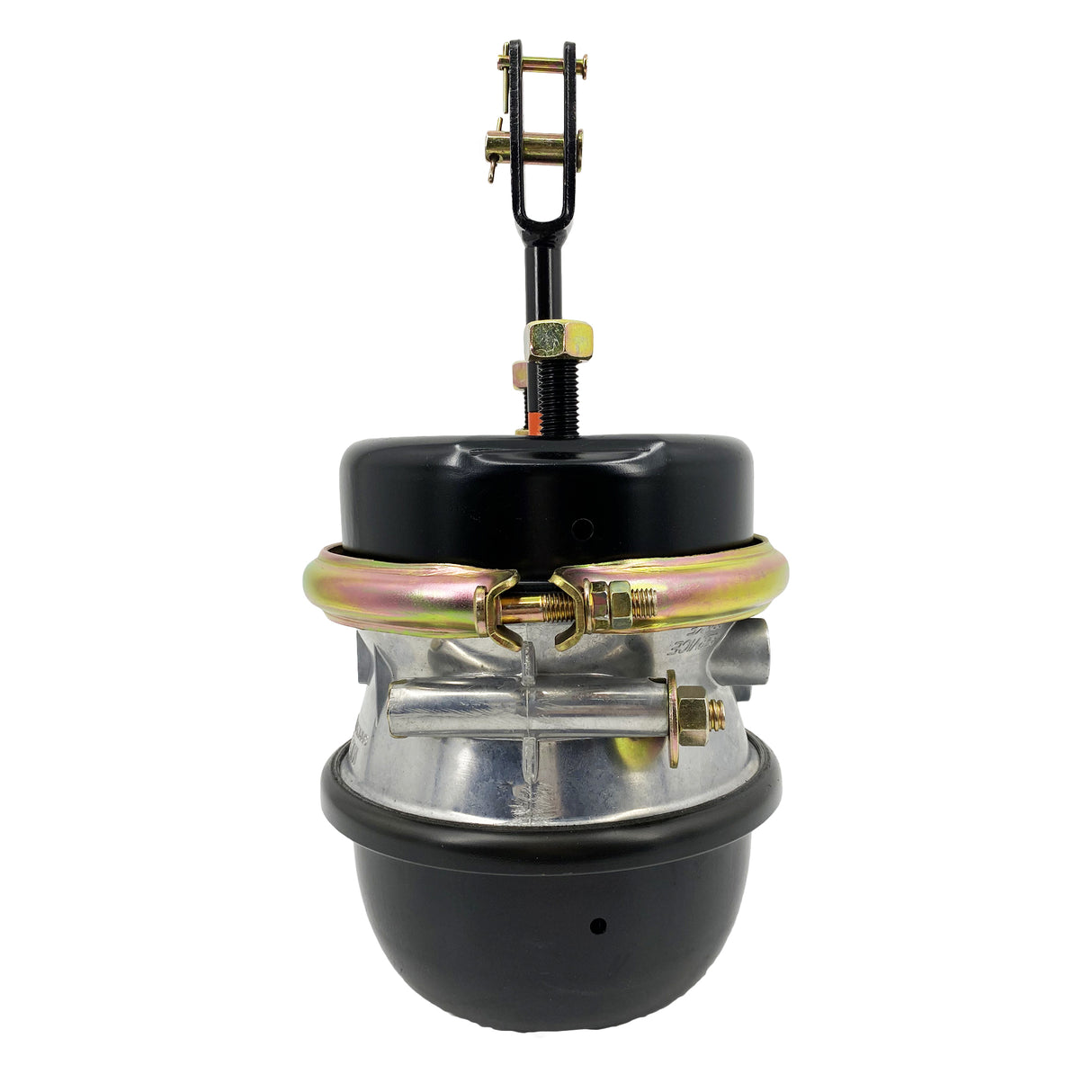

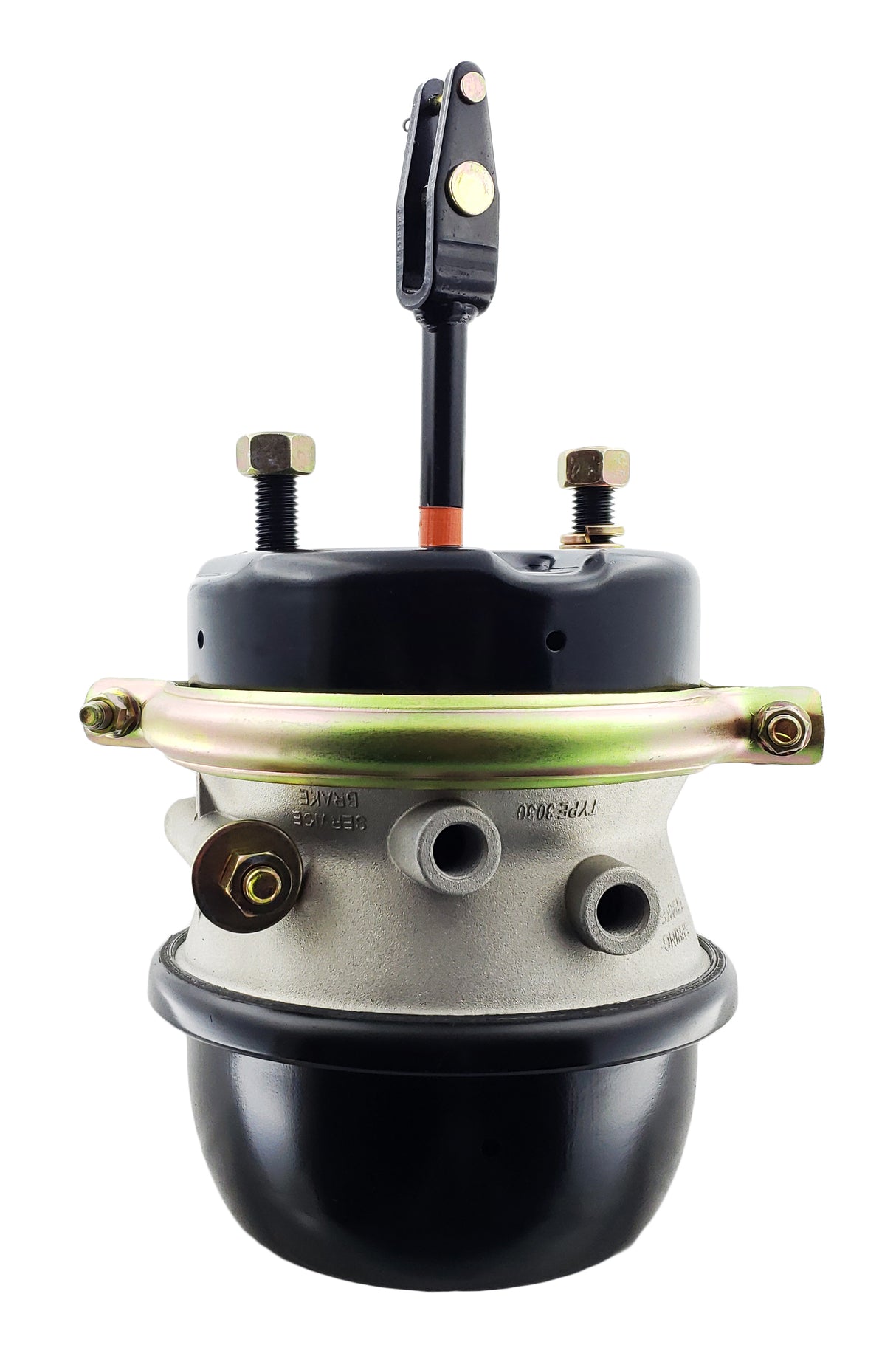

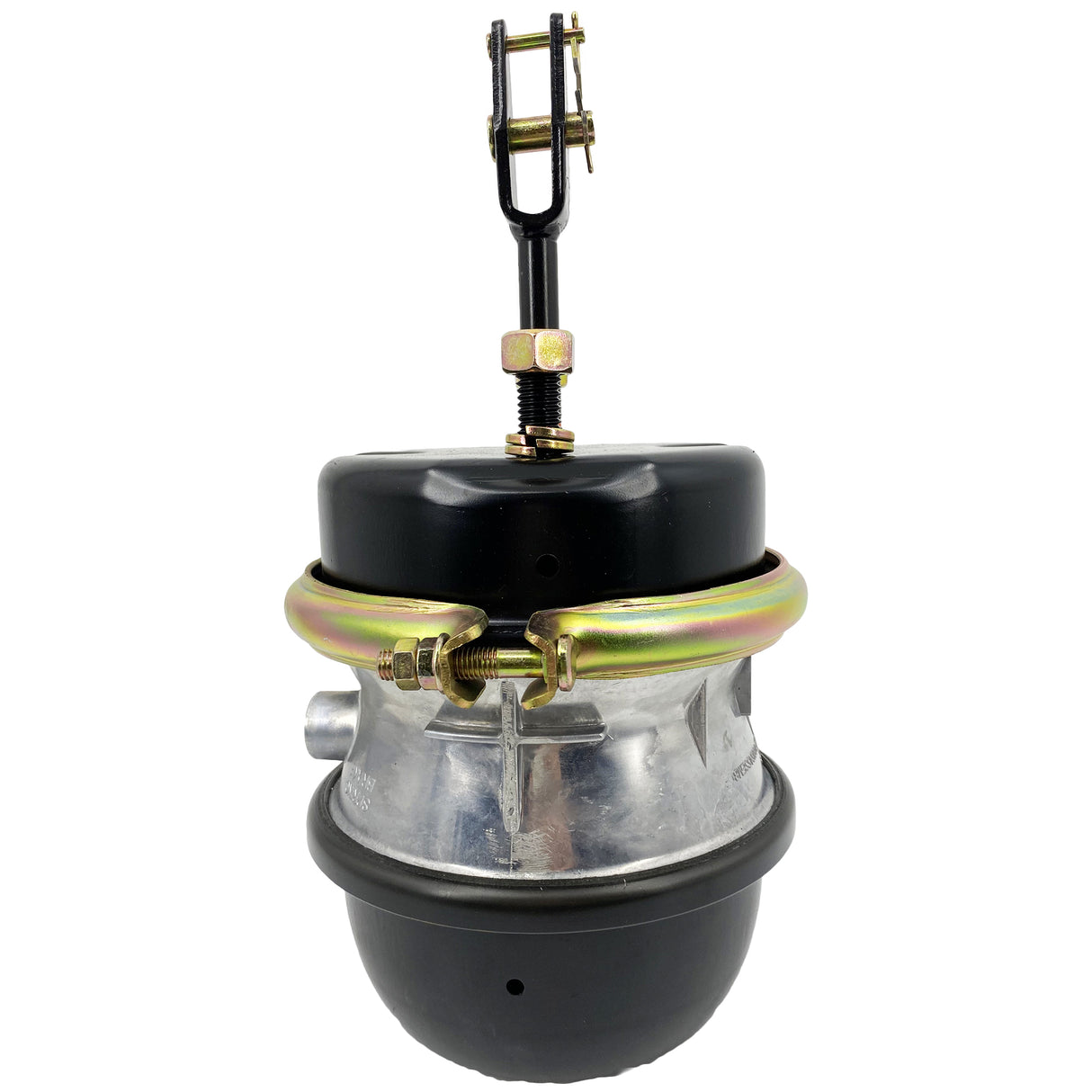

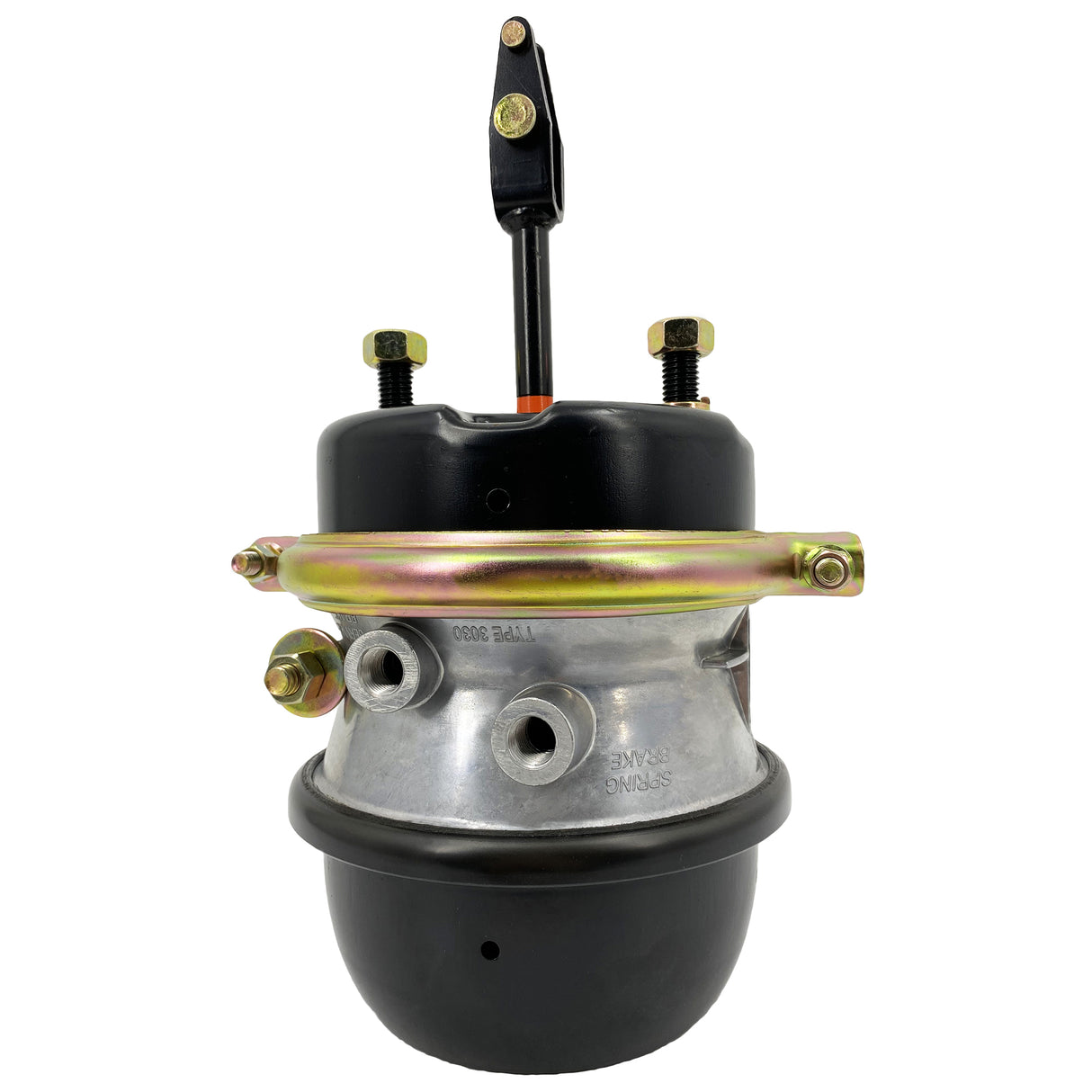

Type 30/30 Air Brake Chamber Welded Clevis 2.5" Stroke

'- High-Quality Torque Air Brake Chamber Type 30/30 Welded Clevis
- Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
- Double O-ring Center seal; Two o-rings for positive sealing and plastic bearings for long life
- World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder-coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications

Replaces

Bendix: K129605, K067114,
Haldex:  GC3030CW, GC3030S4CW
Others: BTS-3030-WCR, GTA-3030-WCR

Specifications

Actuator Type Size	: 3030
Stroke Type	: Standard
Available Stroke	: 2-1/2", 64mm
Length from mounting bracket to the end of Spring Housing	: 9", 229mm
Length of Piggyback	: 6-13/16", 173mm
Dimension at rolled Spring Housing flange	: 8-5/16", 211mm
Dimension at Service Clampband	: 10-3/16", 259mm
Pushrod Length from the face of Service Housing	: 1"
Distance to Clevis Pin centerline from the face of Service Housing	: 2-1/4"
Weight	: 21.3 lbs. , 9.7 kg.
