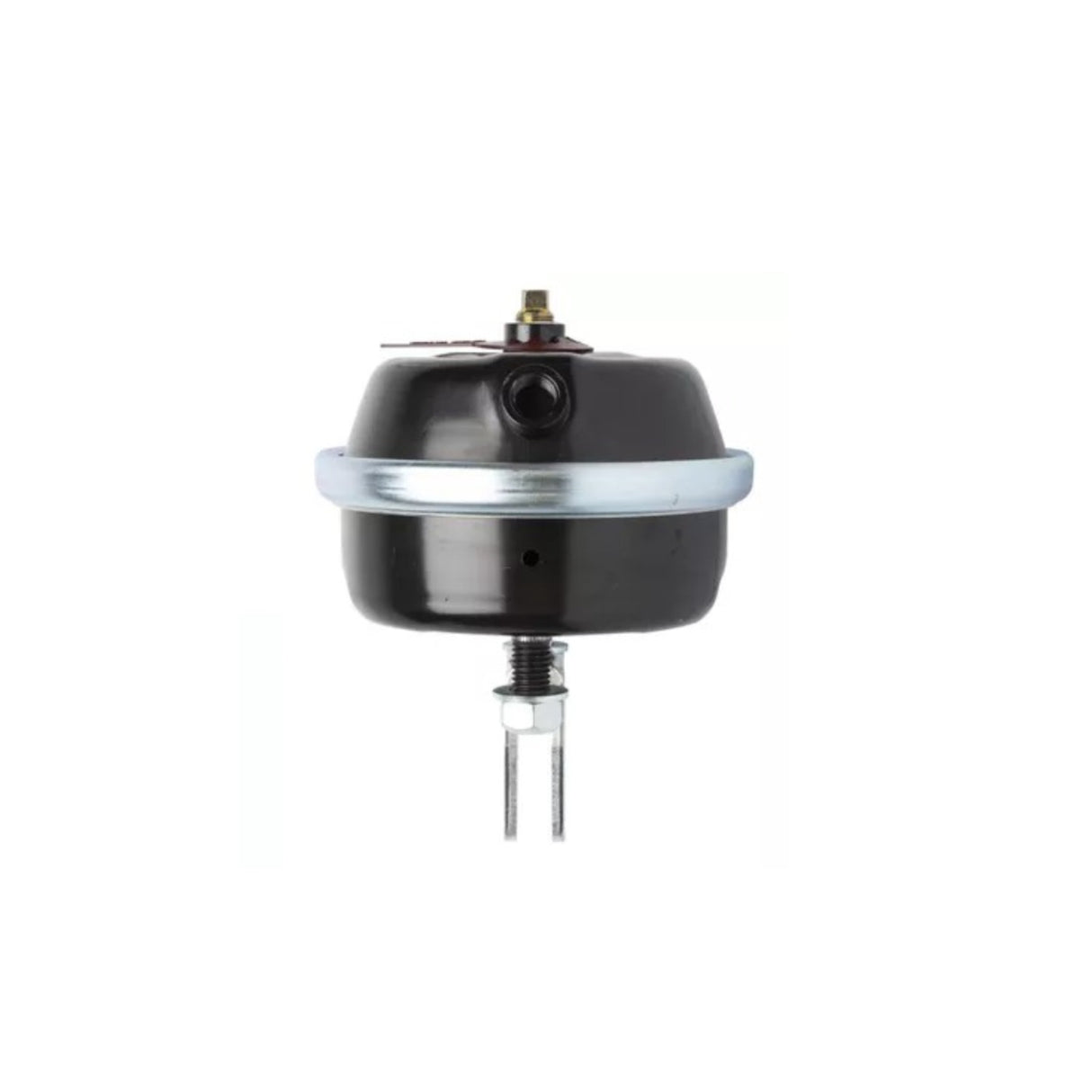

Type 20 Long Stroke Service Brake Chamber with Welded Clevis
Type 20 Long Stroke Service Brake Chamber with Welded Clevis is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Type 20 Long Stroke Service Brake Chamber with Welded Clevis
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/
Description
Description
Type 20 Long Stroke Service Brake Chamber with Welded Clevis, 2.5" Stroke Length
(Replaces Haldex SC20LCW, Automann 179SC20LW225, Meritor B253276T20, Bendix K058311)
TYPE
- Long Stroke Air Brake Chamber Type 20 with Welded Clevis
REPLACEMENT
- Haldex: S127200010, S127200215, S127200216, S127200217, S127200218, S127200220
- Automann: 179SC20LW225
- Meritor: B253276T20
- OEM: HDXSC20LCW
- Bendix: K058311
- Anchorloc: 127200010, 127200011, 127200016, 127200215, 127200216, 127200217, 127200218, 127200220, SC20LCW
- Navistar: 2602424C91, 3679383C91
- Freightliner: HDX127200010
- MGM Brakes: 1621013, 1621901
- Ryder: U55 SC20LCW
SPECS
- Diaphragm Type: Single
- Ram Stroke: 2.5 in.
- Air Port Thread Diameter: 3/8-18 NPTF
- Bracket to End of Spring Housing Length: 4.2 in.
- Clevis Pin Length: 2.25 in.
- Freight Class: 70
- Maximum Pressure: 150 PSI
- Push Rod Length: 1 in.
- Service Clampband Size: 6.8 in.
- Stud Distance: 4.75 in.
FEATURES
- Combination Design: Welded clevis with long stroke size 20 and square bosses.
- Superior Power Spring Technology: Advanced powder coating for enhanced corrosion and fatigue resistance.
- Double O-ring Centerseal: Ensures positive sealing with plastic bearings for extended service life.
- Durable Rubber Compound: Heat and cold resistant for reliable operation in various climates.
- Self-piloting Dust Shield: Protects against debris and contaminants.
