TORQUE Elbow Fitting Male 1/8 NPT x 1/4 PTC Tube

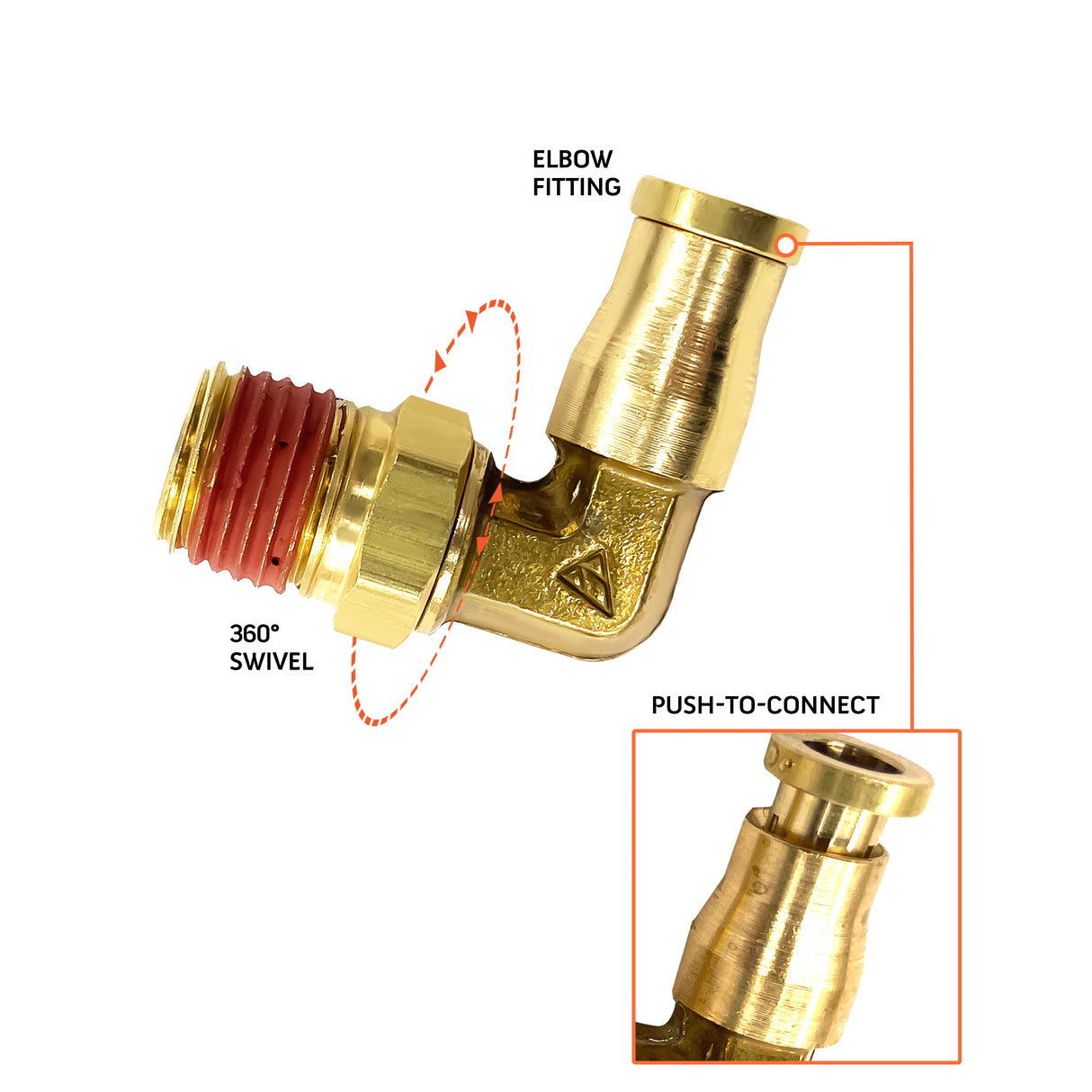

'- High-Quality Torque Push In To Easy Connect Brass Swivel Air Male Elbow Fitting 1/4 OD x 1/8 NPT

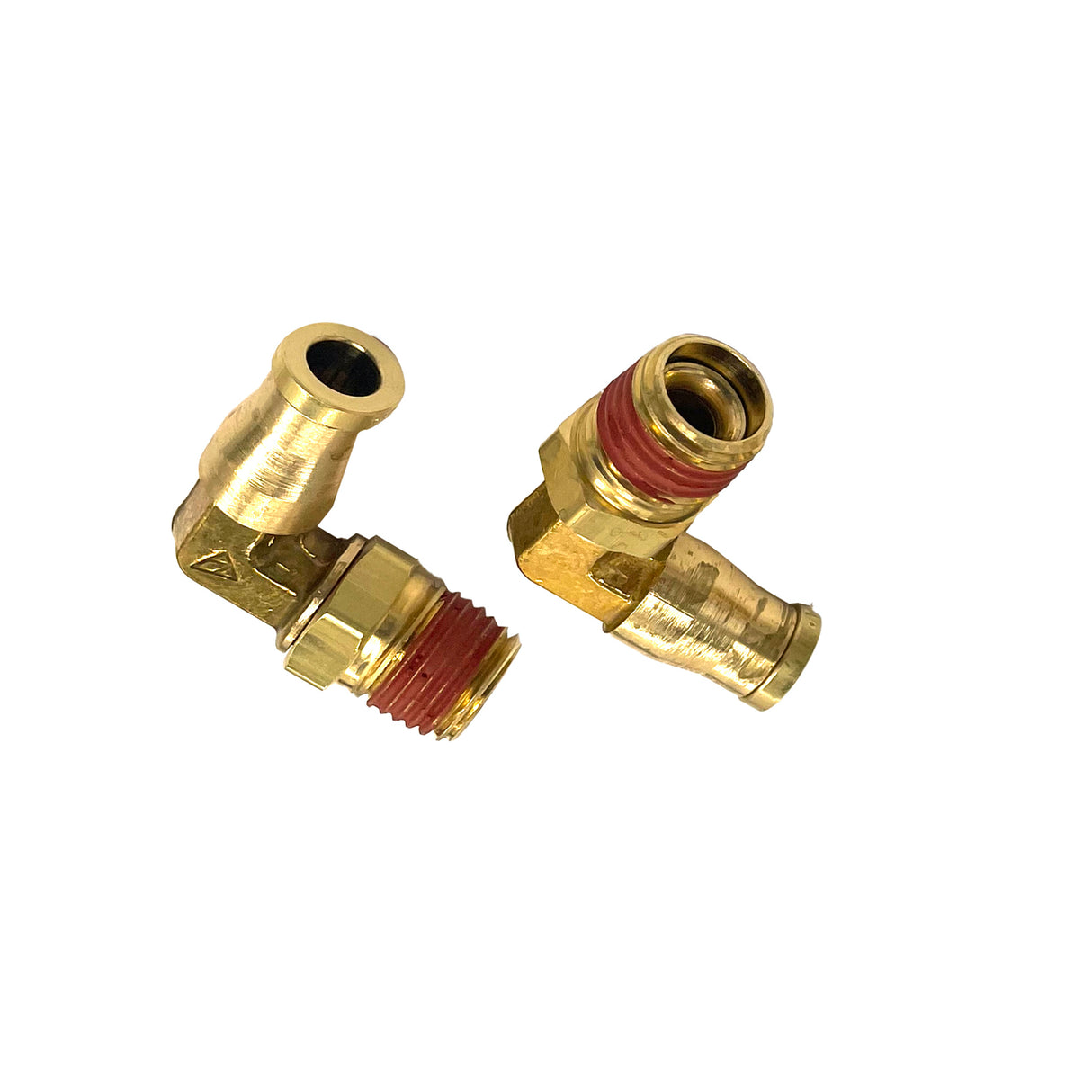

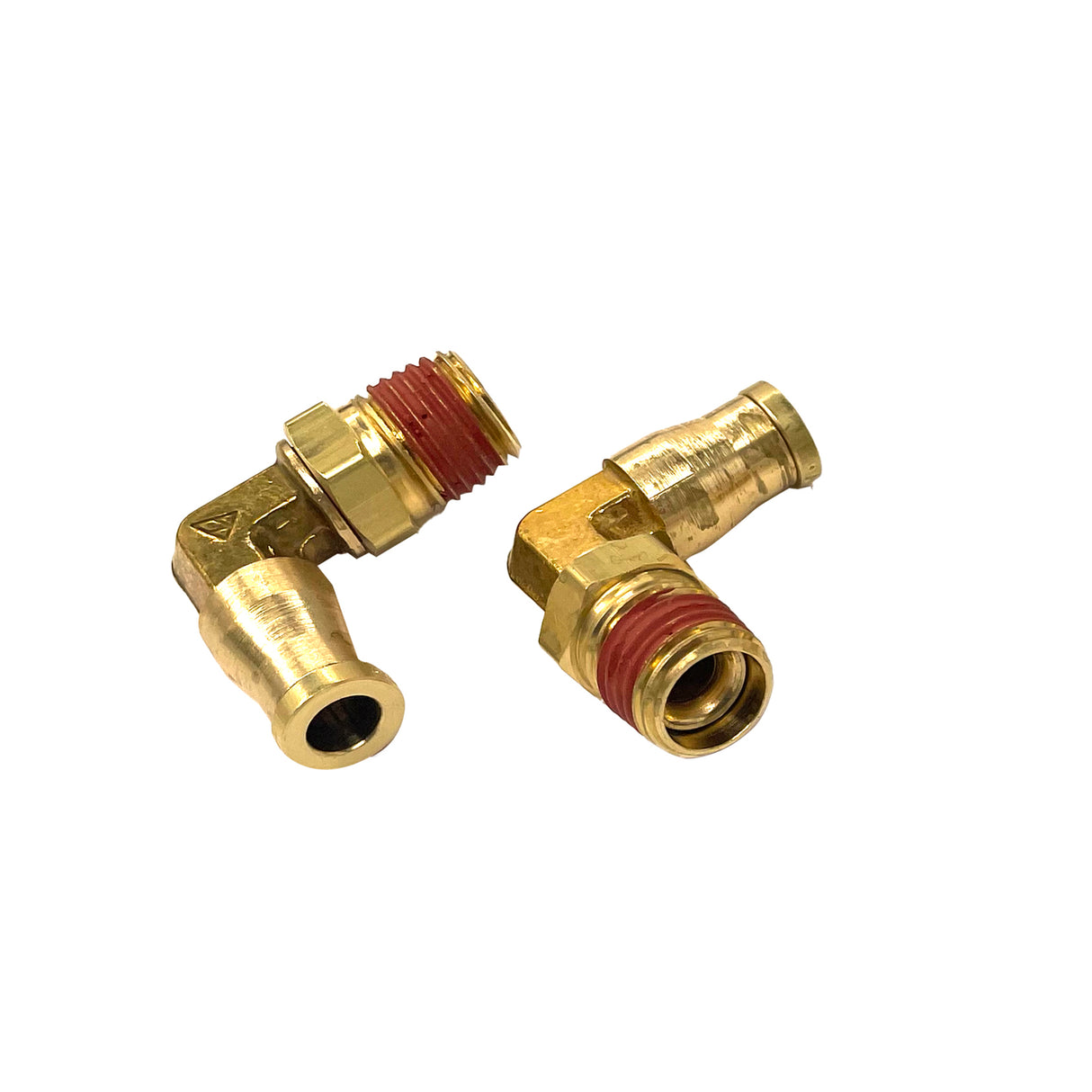

- Package includes 2 Push In To Easy Connect Brass Swivel Air Male Elbow Fittings
- Working Pressure: The fitting is suitable for use up to the maximum working pressure of the recommended plastic tubing.
- Pre-applied thread sealant (Loctite 516) on male pipe threads.
- DOT approved so air tubing won't loosen.

Replaces

Standard Recommended Tubing: J844 Air Brake Tubing
D.O.T: FMVSS 571.106
SAE: J1131, SAE J2494-1, SAE J2494-3.

Specifications

Type	: Swivel Male Elbow
Tube O.D.	: 1/4 in.
Pipe	: 1/8 in.
A	: 1.05 in.
B	: 0.84 in.
C	: 3/8 in.
D	: 1.07 in.
Temperature Range	: -40 to 225 ºF
Threads	: NPTF
