Air Bag Spring for Kenworth Trucks | Replacement Peterbilt C811013 Firestone 8864
Air Bag Spring for Kenworth Trucks | Replacement Peterbilt C811013 Firestone 8864 is backordered and will ship as soon as it is back in stock.
Pickup available at Texas Warehouse
Usually ready in 24 hours
Air Bag Spring for Kenworth Trucks | Replacement Peterbilt C811013 ...
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/
Description
Description

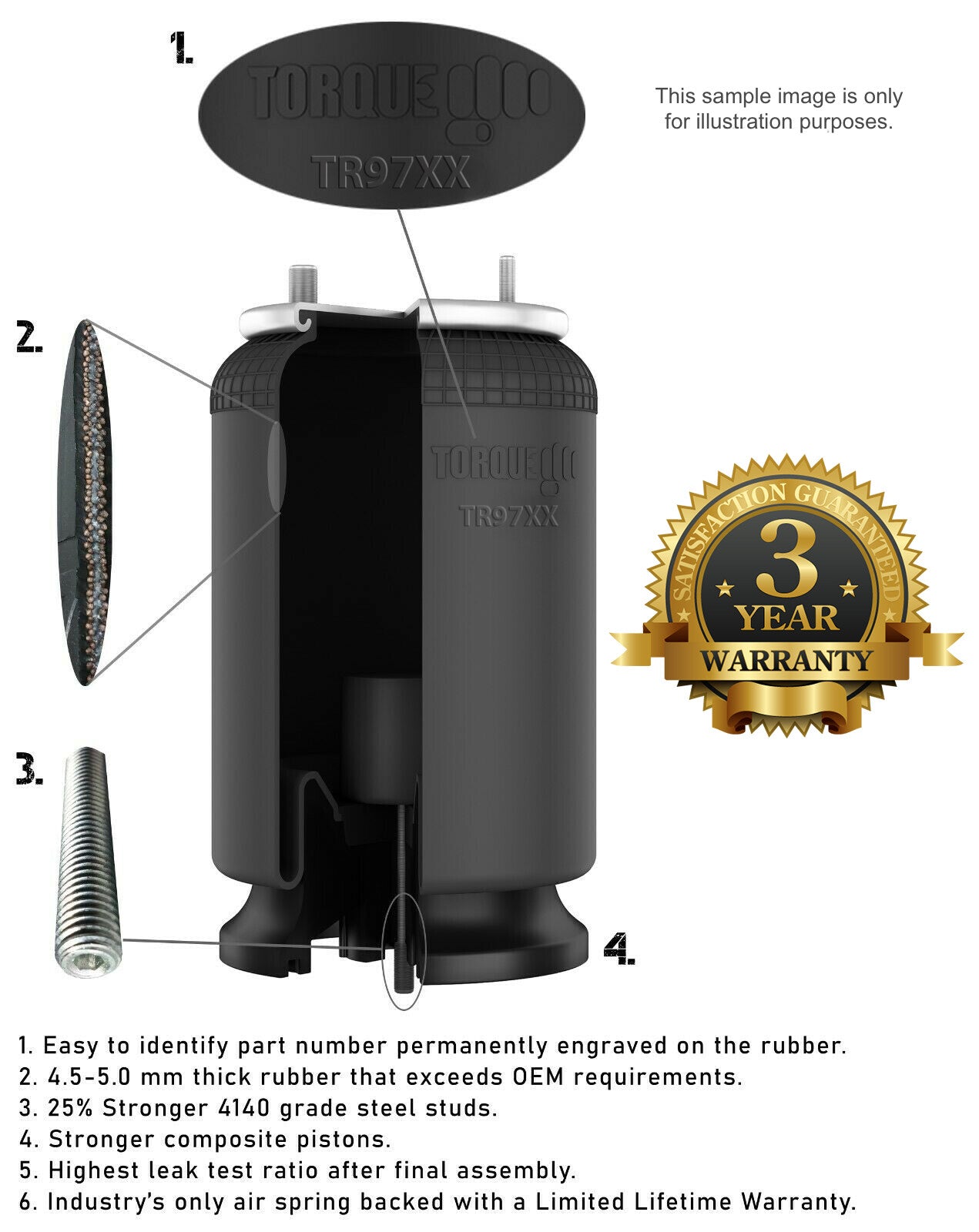

Quality
Easy-to-identify part number permanently engraved on the rubber. Manufactured with 4.5–5.0 mm thick rubber that exceeds OEM requirements.
Features 25% stronger 4140-grade steel studs, reinforced composite pistons, and a high leak-test pass rate after final assembly to ensure long-lasting performance.
Specifications
- Extended Height: 24.50"
- Compressed Height: 7.80"

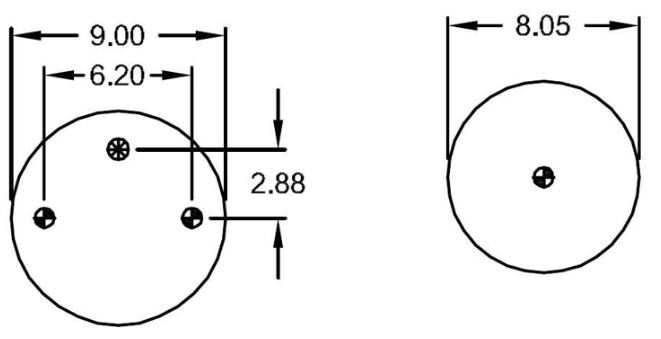

- Top Plate Width: 9.00"
- Piston Width: 8.05"
- Weight: 14.00 lbs
Replaces
- Peterbilt: C81-1013, C811013, 03-08716, 308716
- Paccar: C811011, C811013
- Firestone: W01-358-8864
- Goodyear: 1R12-1097, 1R121097
- ContiTech: 9 10-19P898, 91019P898
- Triangle: AS-8898
- Automann: 566.ER8864
- AS8864, HDV8864, HD8864
- Sampa: SP558864-KP
Warranty
Backed by an industry-leading 3-year unlimited mileage warranty on rolling lobe / reversible sleeve air springs. Warranty registration is required and can be completed through the TORQUE Parts website after purchase.
Fitment Notice
Please contact your dealer to obtain the OEM part number and confirm that this air spring replaces it. Always compare the specifications and reference the product diagram to ensure compatibility.
Important: Purchasing an air spring based solely on vehicle make and model is a common mistake. Always verify by part number and specifications before ordering.
