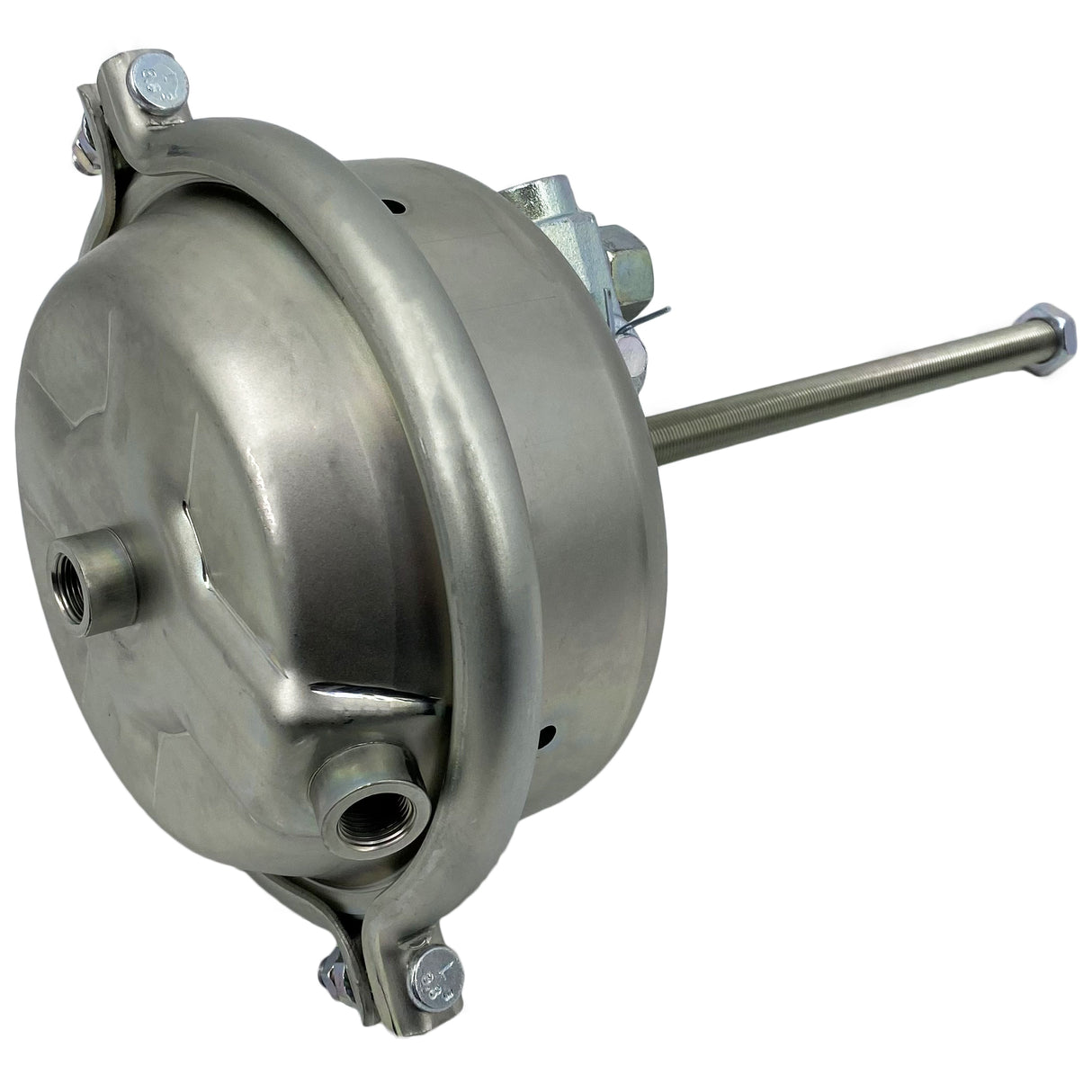

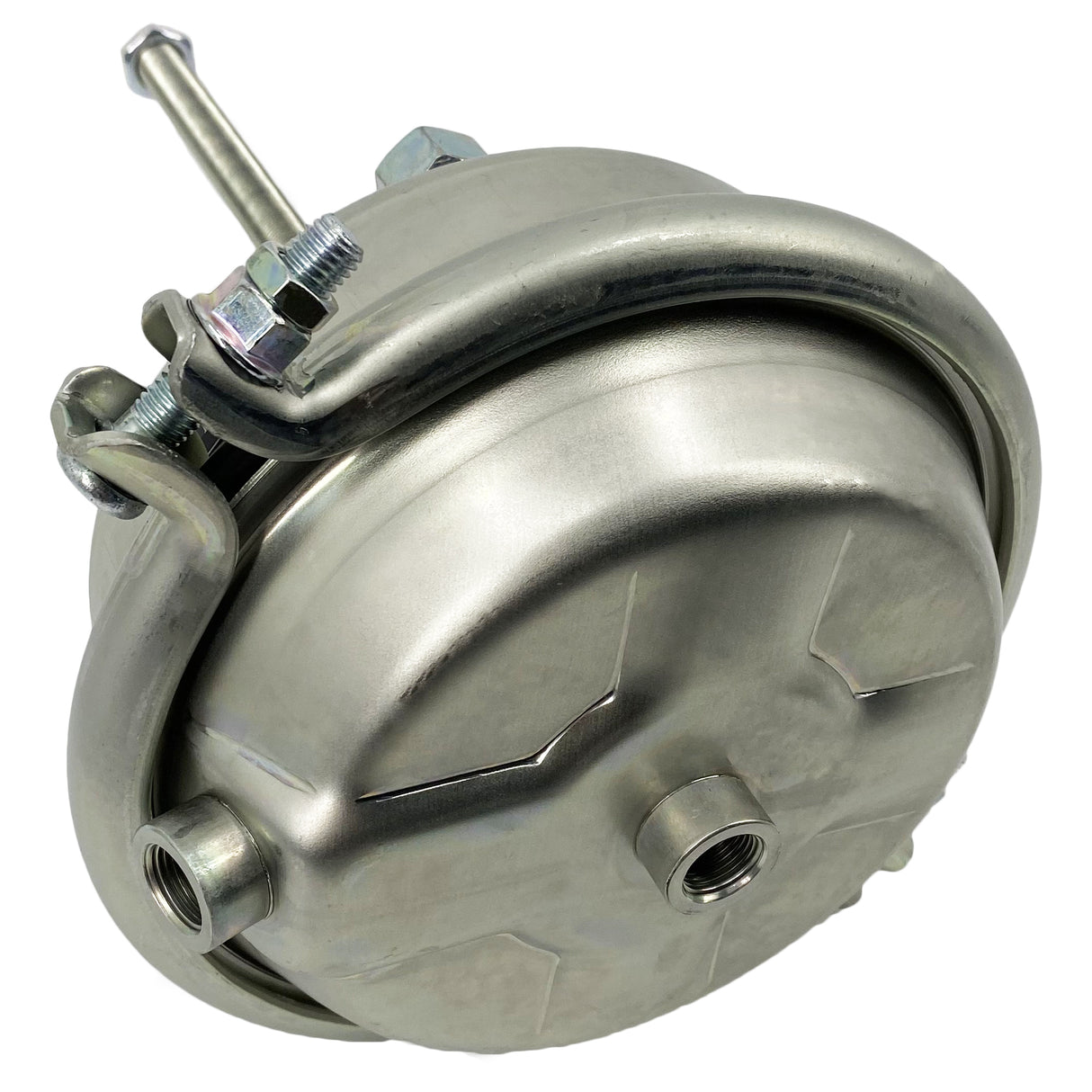

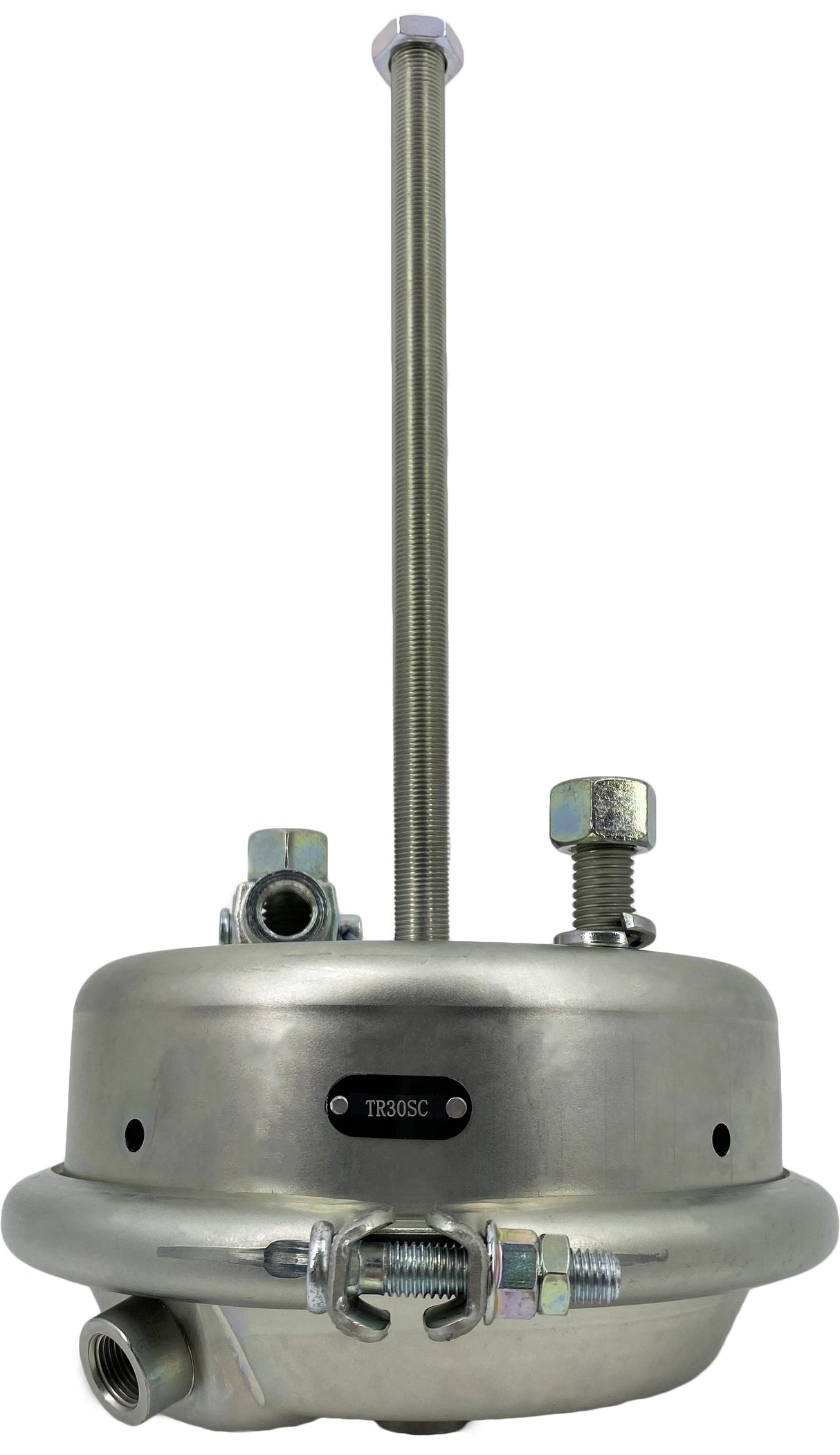

'- High-Quality Torque Air Brake Chamber Service Type 30
- Steel Pressure Housing; Powder coated with resistance welded airports
- World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
- Sturdy Service Housing; Powder coated for corrosion resistance; Flat bottom with 10 gauge steel
- Self-piloting Dust Shield
ReplacesHaldex: SC30, 3000001, 53000001, MA36300
Specifications Actuator Type Size | : 30 |
Stroke Type | : Standard |
Available Stroke | : 2-1/2", 64mm |
AirPort Threads | : 3/8"-18 NPTF |
Length from mounting bracket to the end of Spring Housing | : 3-11/16", 94mm |
Dimension at Service Clampband | : 10-3/16", 259mm |
Stud Spacing with 5/8-11 UNC studs | : 4-3/4", 120.7mm |
Pushrod Length from the face of Service Housing | : 10" |
Pushrod threads | : 5/8"-18 UNF |
AirPort position | : 90° |
Service Clampband position | : 0° |
Maximum Air Pressure | : 150 psi |
Weight | : 10.3 lbs. , 4.7 kg. |
