Description
Description
TYPE

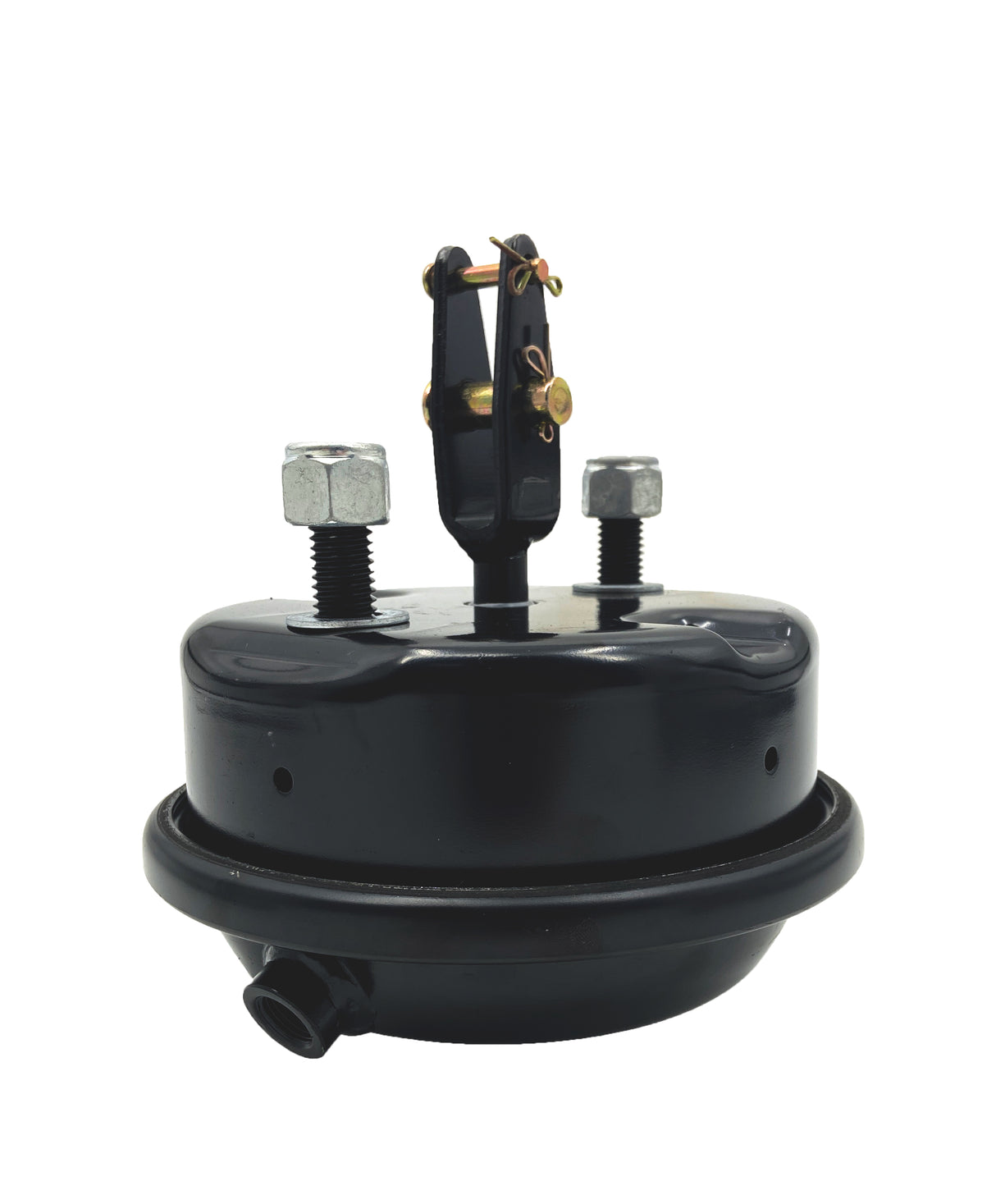

Air brake chamber service Type 30 (T30) designed for dependable braking performance in heavy-duty air brake systems.
REPLACEMENT FOR
Haldex: SC30, 3000001, 53000001, MA36300
SPECIFICATIONS
Actuator Type Size: 30
Stroke Type: Standard
Available Stroke: 2-1/2"
Air Port Threads: 3/8"-18 NPTF
Length (Mounting Bracket to End of Spring Housing): 3-11/16"
Service Clampband Dimension: 10-3/16"
Stud Spacing: 4-3/4" (with 5/8"-11 UNC studs)
Pushrod Length (from face of Service Housing): 10"
Pushrod Threads: 5/8"-18 UNF
Air Port Position: 90 degree
Maximum Air Pressure: 150 psi
Weight: 10.3 lbs
FEATURES
Steel pressure housing with powder-coated, resistance-welded air ports for durability. World-class diaphragm manufactured from high-quality rubber compound resistant to heat and cold. Rugged service housing with corrosion-resistant powder coating and flat bottom made from 10-gauge steel. Includes a self-piloting dust shield for added protection.
WARRANTY
Covered by a 1-year unlimited mile warranty, providing quality assurance and replacement coverage if an issue occurs within the warranty period.
