Elbow Fitting Male 1/8 NPT x 1/4 PTC Replace Air Lift 21837
Elbow Fitting Male 1/8 NPT x 1/4 PTC Replace Air Lift 21837 is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at California Warehouse

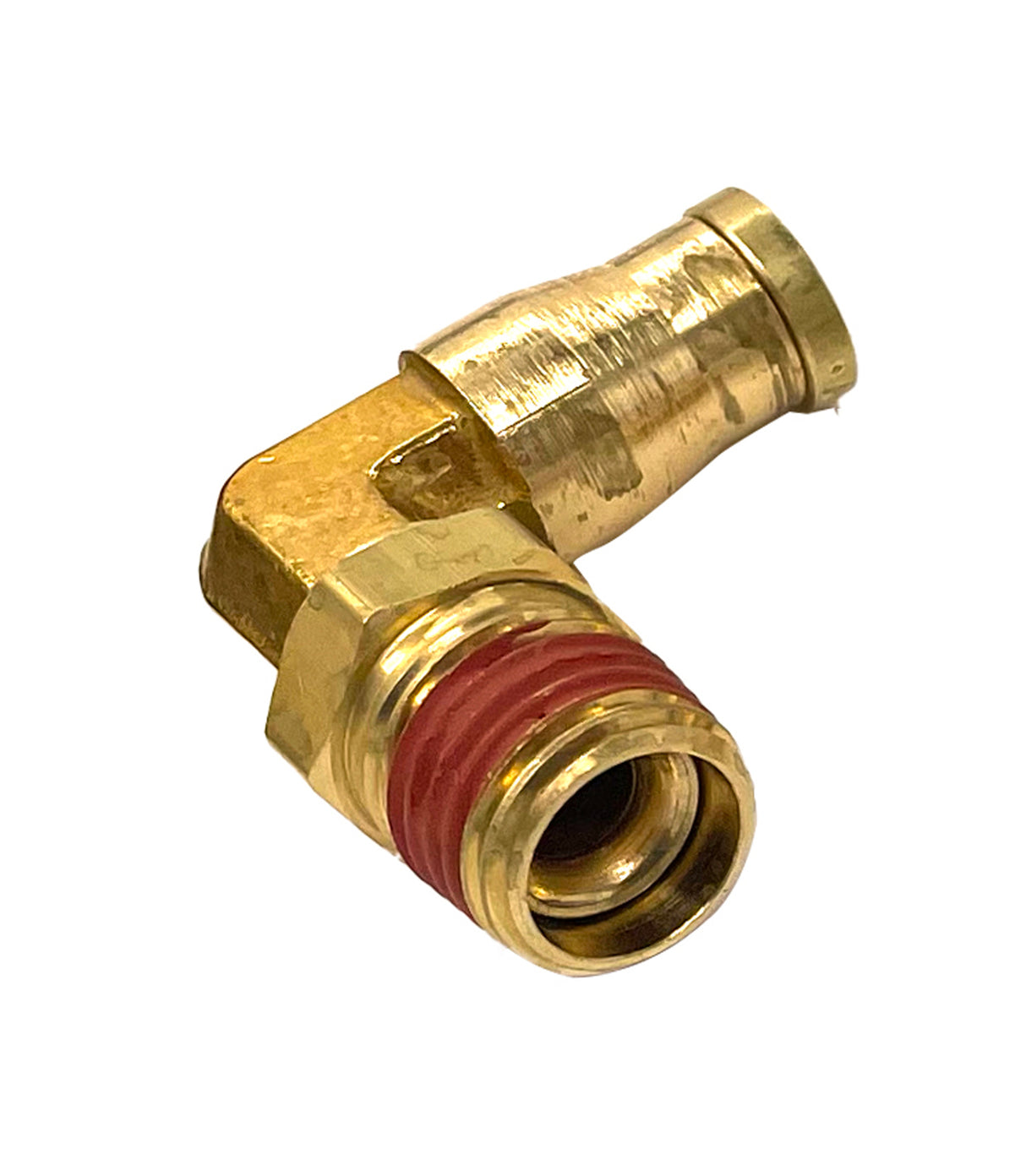

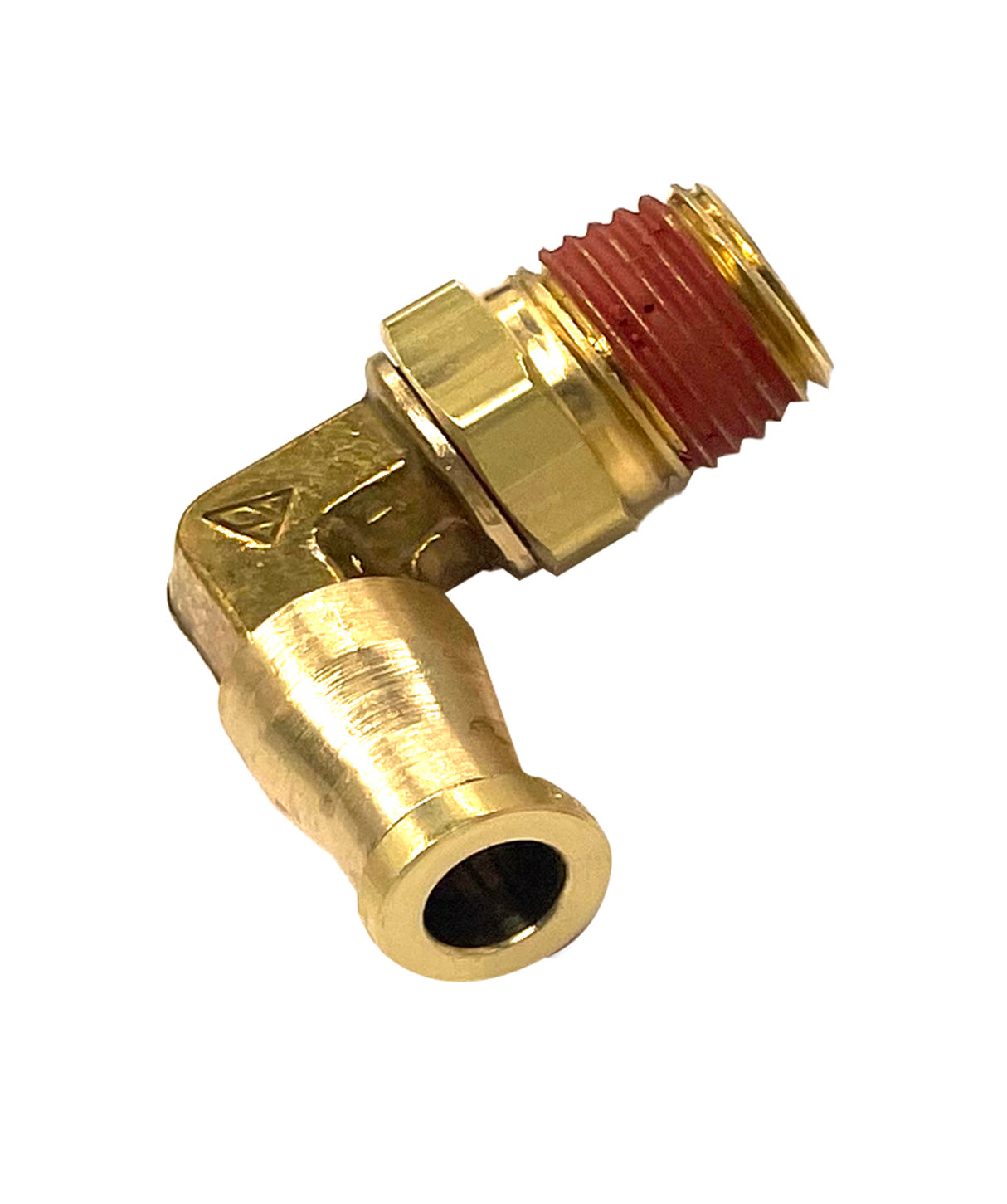

Elbow Fitting Male 1/8 NPT x 1/4 PTC Replace Air Lift 21837
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/
Description
Description
HIGH-QUALITY TORQUE BRASS FITTING
Premium push-to-connect swivel male elbow fitting engineered for reliable air line connections in demanding air brake and pneumatic systems.
SPECIFICATIONS
Type: Swivel Male Elbow
Tube Outside Diameter: 1/4"
Pipe Thread: 1/8" NPTF
A: 1.05"
B: 0.84"
C: 3/8"
D: 1.07"

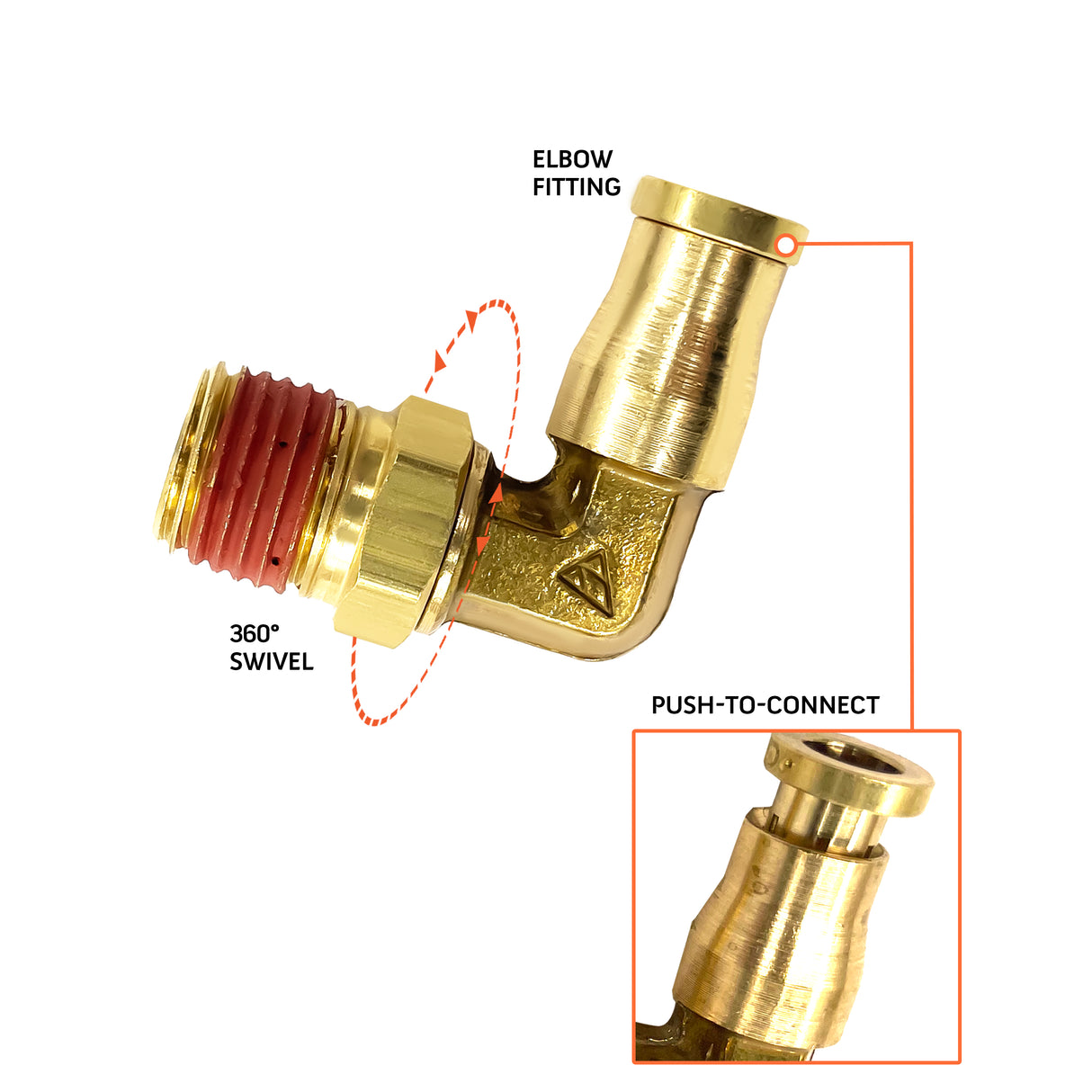

PUSH-TO-CONNECT DESIGN
Allows quick, tool-free installation while providing a secure, leak-free seal. Swivel elbow design improves hose routing and reduces stress on air lines.
DURABLE BRASS CONSTRUCTION
Made from high-quality brass for excellent resistance to corrosion, vibration, and wear in commercial and heavy-duty applications.
OPERATING RANGE
Temperature Range: -40°F to 225°F
Threads: NPTF
Working Pressure: Suitable up to the maximum working pressure of recommended plastic tubing
TUBING COMPATIBILITY
Recommended for use with SAE J844 air brake tubing, ensuring safe and compliant performance in air brake systems.
APPLICATION
Ideal for air brake systems, air suspension, pneumatic controls, trucks, semi-trucks, trailers, buses, RVs, and industrial air applications.
