Air Spring Bag for Hendrickson Trailer | Replacement Firestone 9122 Hendrickson C-3467 | 2 Pack
Air Spring Bag for Hendrickson Trailer | Replacement Firestone 9122 Hendrickson C-3467 | 2 Pack is backordered and will ship as soon as it is back in stock.
Pickup available at Texas Warehouse
Usually ready in 24 hours
Air Spring Bag for Hendrickson Trailer | Replacement Firestone 9122...
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/
Description
Description
Designed for demanding heavy-duty applications, this TORQUE air spring delivers superior strength, precise fitment, and long-lasting suspension performance—built to exceed OEM standards.
🛠️ QUALITY

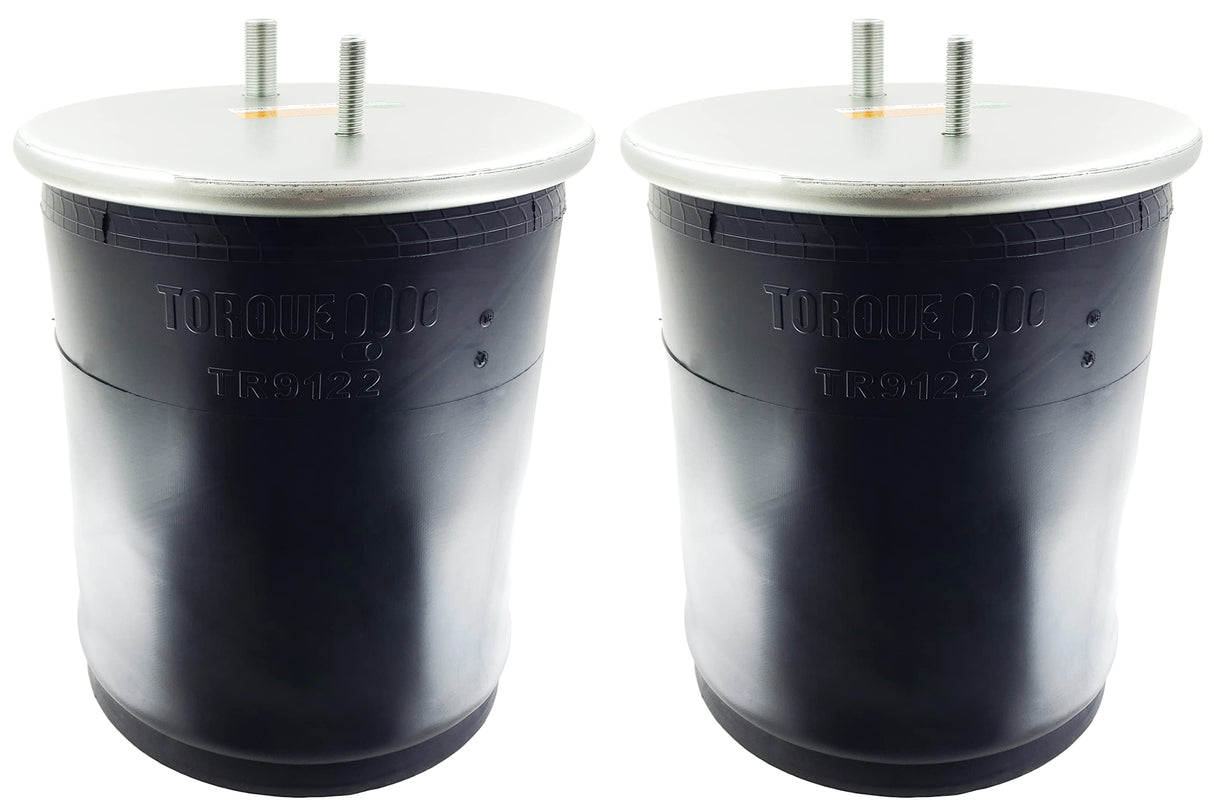

🔹 Permanently engraved part number on the rubber for easy identification
🔹 Heavy-duty 4.5–5.00 mm thick rubber exceeding OEM requirements
🔹 25% stronger 4140-grade steel studs for added durability

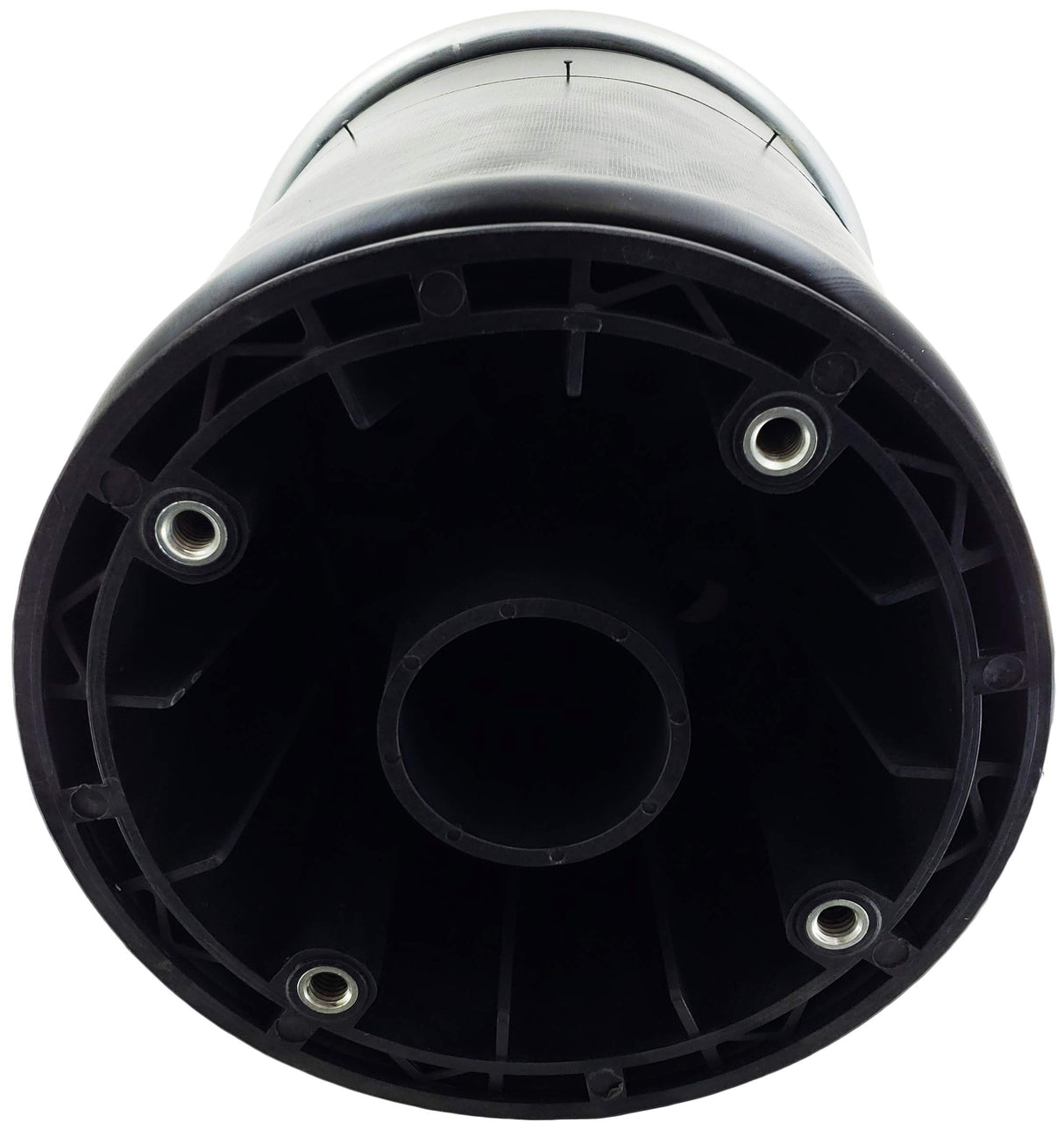

🔹 Reinforced composite pistons for increased strength
🔹 Industry-leading leak test ratio after final assembly

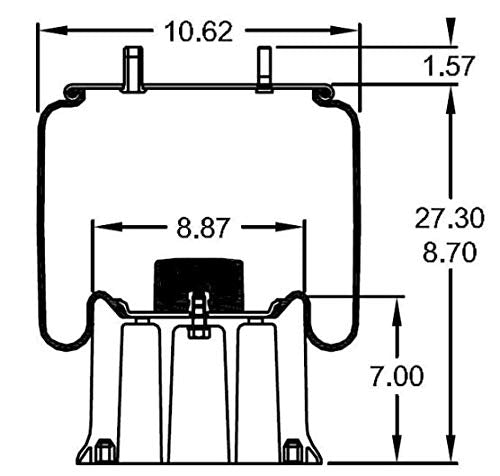

📐 SPECS
📏 Extended Height: 27.30"
📉 Compressed Height: 8.70"

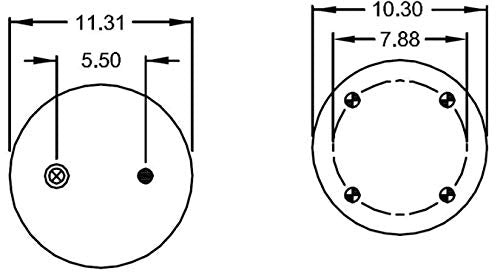

📦 Top Plate Width: 11.31"
⚙️ Piston Width: 10.30"
⚖️ Weight: 21.00 lbs
🔁 REPLACEMENT FOR
🔄 Firestone W01-358-9122
🔄 Goodyear 1R13-038, 1R14-045, 1R13-048, 1R14-060
🔄 Hendrickson Canada B-12514-008, B-12514-010
🔄 Hendrickson S-3467, S-3830, C-3467, C-3830
🔄 Contitech 11 10 5-21 A 313
🔄 Holland (Neway) 905-57-020, 905-57-071, 905-57-076, 905-57-077, 905-57-185
🔄 Reyco 12883-02
🔄 Ridewell 1003589122C
🔄 Triangle 8313
🔄 Watson & Chalin AS-0023
🔄 AS9122 / HDV9122 / HD9122
🔄 Sampa SP559122-KP
🛡️ WARRANTY
⭐ 3-Year Unlimited Mileage Warranty – industry-leading coverage
⭐ Warranty registration available via the Torque Parts website
🚚 FITMENT NOTICE (IMPORTANT)
⚠️ Do NOT purchase by make & model alone
📞 Contact your dealer to confirm the correct part number
📊 Compare all dimensions with the diagram before ordering
❗ Buying by vehicle model is one of the most common mistakes
