Air Spring Bag for Hendrickson | Replacement Firestone 9039 Hendrickson C-2064 | 2 Pack
Air Spring Bag for Hendrickson | Replacement Firestone 9039 Hendrickson C-2064 | 2 Pack is backordered and will ship as soon as it is back in stock.
Pickup available at Texas Warehouse
Usually ready in 24 hours
Air Spring Bag for Hendrickson | Replacement Firestone 9039 Hendric...
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/
Description
Description
Designed for heavy-duty performance, this TORQUE rolling lobe air spring delivers reliable load support, durability, and long service life while exceeding OEM standards.
🛠️ QUALITY

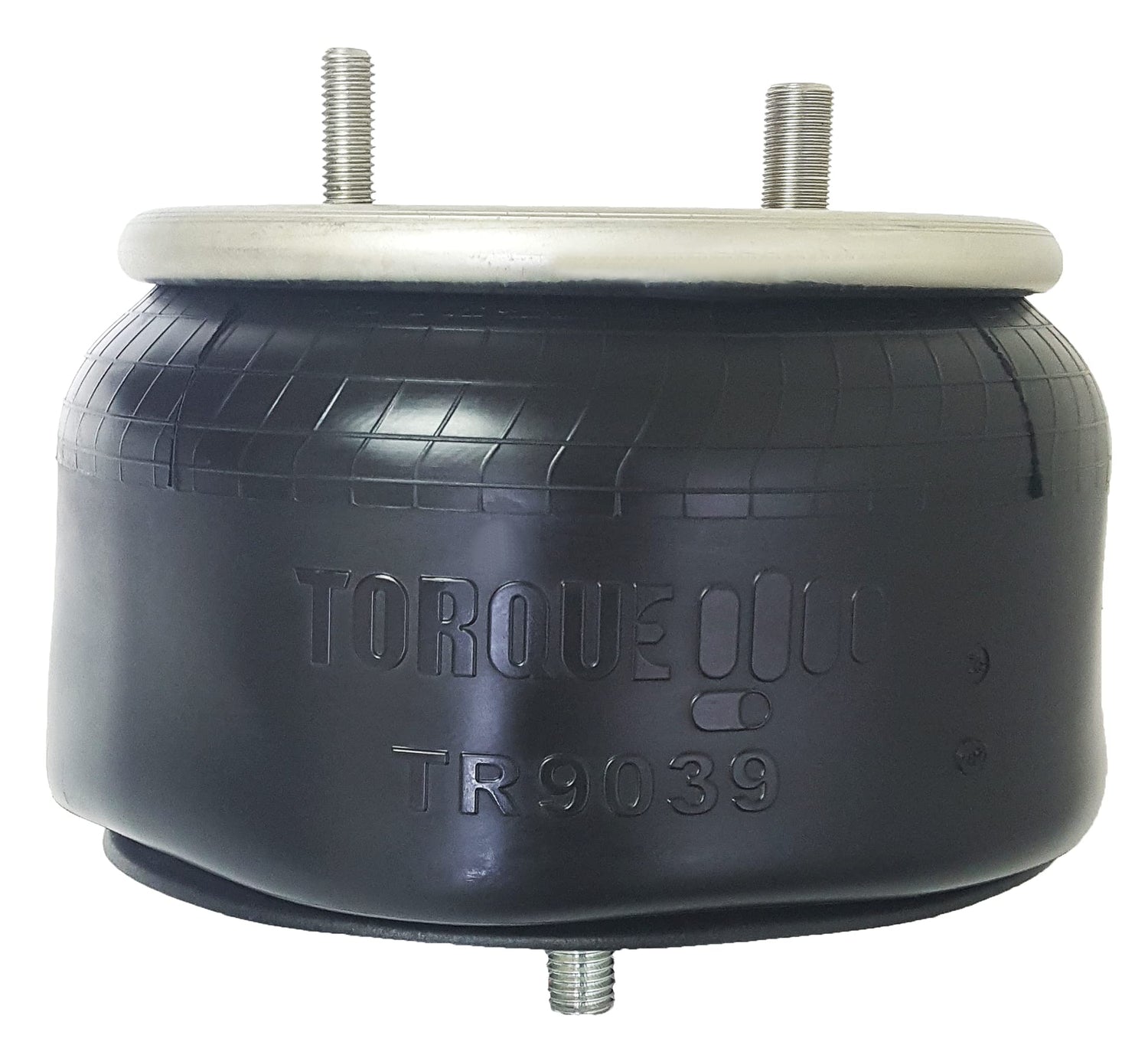

🔹 Permanently engraved part number for easy identification
🔹 4.5–5.00 mm thick rubber that exceeds OEM requirements
🔹 25% stronger 4140-grade steel studs for added durability
🔹 Heavy-duty composite pistons for long-term performance
🔹 Highest leak-test ratio after final assembly
📐 SPECS
📏 Extended Height: 21.70"
📉 Compressed Height: 7.30"
📦 Top Plate Width: 9.00"
⚙️ Piston Width: 11.06"
⚖️ Weight: 11.7 lbs
🔁 REPLACEMENT FOR
🔄 Firestone W01-358-9039
🔄 Goodyear R12-095
🔄 Hendrickson S-2064, S-11650
🔄 Holland (Neway) 905-57-011, 905-57-023, 905-57-085
🔄 Triangle AS-8311
🔄 Watson & Chalin AS-0012
🔄 Automann AB1DK23F-9039
🔄 AS9039 / HDV9039 / HD9039
🔄 Sampa SP559039-KP
🛡️ WARRANTY
⭐ 3-Year Unlimited Mileage Warranty
⭐ Registration required via the Torque Parts website
🚚 FITMENT NOTICE (IMPORTANT)
⚠️ Do NOT purchase by vehicle make or model
📞 Confirm the OEM part number with your dealer

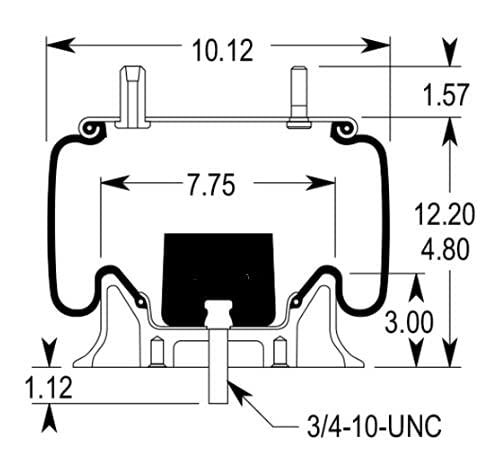

📊 Match all dimensions with the diagram image
❗ Buying by make/model is one of the most common mistakes
