Type 30/30 Air Brake Chamber Welded Clevis 3" Long Stroke | Replacement Haldex GC3030LCW
Type 30/30 Air Brake Chamber Welded Clevis 3" Long Stroke | Replacement Haldex GC3030LCW is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Type 30/30 Air Brake Chamber Welded Clevis 3" Long Stroke | Re...
Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/
Description
Description
Built for powerful, reliable braking performance, this long-stroke 3030 air brake chamber is engineered to OEM standards for durability, safety, and consistent stopping power in demanding heavy-duty applications. 🚛💨

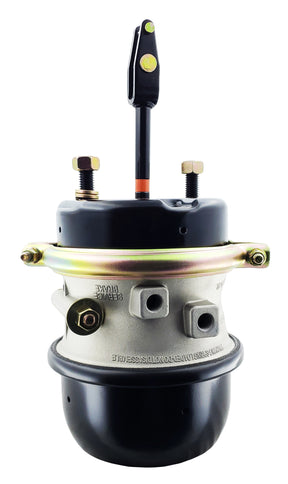

🔧 TYPE – Long Stroke Air Brake Chamber 3030 (30/30) with Welded Clevis
🔁 REPLACEMENT FOR –
Bendix NT3030ELSWC / NT3030ELS-WC
Haldex GC3030LCW / LC3030LCW
Freightliner HDX1373030215
Automann 179.SB3030SLW225
IHC 3541891C91
Others: BTS-3030LS-WCR, GTA-3030LS-WCR
📏 SPECS –
• Actuator Size: 3030
• Stroke Type: Long Stroke (3")
• Length (Mounting Bracket → Spring Housing): 9-7/8"
• Piggyback Length: 7-3/8"
• Rolled Spring Housing Flange: 8-5/16"
• Service Clampband: 10-3/16"
• Pushrod Length: 1"
• Clevis Pin Centerline Distance: 2-1/4"
• Weight: 21.9 lbs
⚙️ FEATURES –
• Welded Clevis with long-stroke 3030 square bosses
• Superior power spring technology for consistent braking force
• Advanced powder-coat finish to resist corrosion and fatigue
• Double O-ring center seal for positive sealing and extended service life
• High-quality diaphragm resistant to heat and cold
• Self-piloting dust shield for added protection
• Designed to fit all drum brake applications
🛡️ WARRANTY –
Covered by a 1-Year Unlimited Mileage Warranty, ensuring quality assurance and hassle-free replacement if needed.
